Product Details:
|
| Name: | Tile Adhesive Mixing Machine | Capacity: | 10-30 T/H |
|---|---|---|---|
| Advantage: | High Productivity | Power: | 100kw |
| Packing: | Automatic Packing | Packing Speed: | 6s/bag |
| Mixing Time: | 3-5 Minutes | Occupied Area: | 8*8*8m |
| Co: | Twin Shaft Mixer | ||
| Highlight: | 30T/H Dry Mix Plant,Computer Control Dry Mix Plant,30T/H Tile Adhesive Mixing Machine |
||

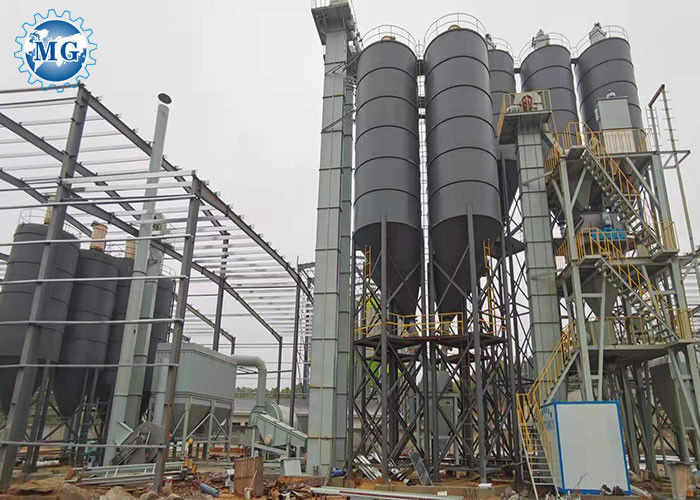

10-30 T/H Automatic Dry Mortar Tile Adhesive Mixing Machine
1. Description of MG automatic dry mortar tile adhesive mixing machine:
China famous MG automatic tile adhesive machine ,the pretreatment raw materials will be lifted into raw material silo, then raw material is flowing through the hopper, Next, by computer ingredients, screw conveyor metering, mixing and packaging machine package to bags or in bulk or finished goods warehouse into the car storage process into the final product.
China famous MG automatic tile adhesive machine is widely used to produce all kinds of mortar: wall putty mortar (Skim Coat), Rendering Mortar, Masonry Mortar,Tile Adhesive Mortar, Waterproof Mortar, Screed Mortar, Thermal Insulation Mortar, etc
2. Working principle of MG automatic dry mortar tile adhesive mixing machine:
The non-gravity mixer works in the principle of mixing the materials in air countercurrent. The double shaft paddles are installed inside the drum and rotated in the opposite direction to each other. Each of the paddles is designed in rational separation distance and angle degree through the scientific calculation. When the materials are thrown to the air current inside drum by the force from the rotating paddles, the non-gravity force will be instantaneously generated and the materials will be thrown to the opposite area. The space between the twins shafts will be formed a fluidized non-gravity area and an air eddy current, in the bottom part, an air flowing layer also will be formed inside the drum. As a result, the materials are taken the three-dimensional compound motions, in order to be evenly, rapidly and circularly mixed in all aspects.
3. Configuration of MG automatic dry mortar tile adhesive mixing machine:
4. Technical parameter of MG full automatic dry mortar production line:
| Model | 2000L mixing plant | 3000L/4000L mixing plant |
| Capacity | 10-12T/H | 15-30T/H |
| Total power | 80KW | 100KW |
| Workshop Area | 500-600m² | 700-800m² |
| Worker Required | 2-3person | 3-4person |
5. Features:
The equipment structure sets out flexibly
The equipments function is stable and reliable
Green, economized on energy and environmental protection
Service first principle:
Our professional service engineers pay attention to your equipments at every moment. Ensure your equipments running stably and reliably, lower cost of equipments maintenance, maximize your enterprise economic efficiency and social efficiency.
6.Workshop of Zhengzhou MG Industrial Co.,Ltd
7. Certificates
8. Full automatic dry mortar tile adhesive mixing machine installed in foreign countries:
Zhengzhou MG industrial Co., Ltd, the leader of Full Automatic dry mortar Production Line!
Zhengzhou MG industrial Co., Ltd, was verified by ISO9001 quality control system, awarded as Henan first-class science and technology enterprise by government. We were Henan observe quality and credibility enterprise union governing unit in 2012.
Our company engaged in the dry powder mixing equipment R&D, production, sales and construction, providing most efficient turnkey solutions to our clients in green building energy-saving insulation and green wall (building) materials manufacturing equipment, production technology and construction program.
Our main products include dry mortar production line, thermal insulation mortar production line, sand dryer, powder blending machine, concrete mixer, and others.
10. Why Choose Us
We mainly engaged in providing turn-key service to numerous customers with engergy-saving and efficient practical solutions. Main advantage of dry powder mixing equipment from Zhengzhou MG (compared with other suppliers):
1. Over 20 years experience in this line. since 2000, Zhengzhou MG dedicated in the research and development of dry powder mixing equipment for decades, we are in a leading position in this trade;
2 . We provide to customers with combat experience of decade years of construction management and multiple efficient project solution.
3. The special additives from Zhengzhou MG guranteed the quality of dry mortar from our clients.
We promise to all customers that: upon you choose our services and products, we will provide the first-class product quality, latest technology in mortar formula, and special additives; we ensure the good quality of dry mortar produced by our equipment.
