Product Details:
|
| Name: | Dry Mortar Mixing Machine | Mixer Type: | Twin Shaft Mixer |
|---|---|---|---|
| Mixing Time: | 3-5 Minutes | Weight: | 28T |
| Worker Required: | 3-4 Person | Packing: | Valve Port Packing Machine |
| Advantage: | High Productivity | Control System: | Intelligent Control System |
| High Light: | Automatic Feeding Dry Mortar Mixing Machine,30 T/H Dry Mortar Mixing Machine,Automatic Feeding Dry Mortar Plant |
||

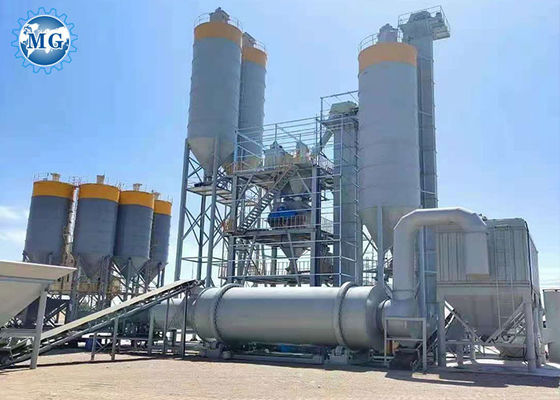

10-30 T/H Automatic Feeding Dry Mortar Mixing Machine Plant Factory Sale
1. Mechnical principle of MG Automatic Dry Mortar Mixing Machine Plant:
The non-gravity mixer works in the principle of mixing the materials in air countercurrent. The double shaft paddles are installed inside the drum and rotated in the opposite direction to each other. Each of the paddles is designed in rational separation distance and angle degree through the scientific calculation. When the materials are thrown to the air current inside drum by the force from the rotating paddles, the non-gravity force will be instantaneously generated and the materials will be thrown to the opposite area. The space between the twins shafts will be formed a fluidized non-gravity area and an air eddy current, in the bottom part, an air flowing layer also will be formed inside the drum. As a result, the materials are taken the three-dimensional compound motions, in order to be evenly, rapidly and circularly mixed in all aspects.
2. Features of MG Automatic Dry Mortar Mixing Machine Plant:
1.It features magnificent appearance, good quality, high productivity and accurate mortar proportioning.
2. The dry mortar production line uses a centralized control system, making the equipment easy to operate.
3. According to the layout type, it can be classified into tower type, self tower type and series type. Its up to the customers workshop area. The needed area is 500~5000m2.
4. We can provide one-stop service from design to installation according to our customers' specific requirement.
| Model | 2000L Mixing plant | 3000/4000L Mixing plant | 6000L Mixing Plant | 10000L Mixing Plant |
| Capacity | 10-12T/H | 15-30T/H | 30-40T/H | 50-60T/H |
| Machine Height | 8-9m | 9-10m | 11-12m | 13-15m |
| Total Power | 80-90KW | 90-100KW | 100-120KW | 120-150KW |
| Worker Required | 2-3 person | 3-4 person | 3-4 person | 3-4 person |
| Workshop Required | 500-600㎡ | 600-800㎡ | 800-1000㎡ | 1000-1500㎡ |
| Bag belt Conveyor | B500X5000mm | B500X5000mm | B500X5000mm | B500X5000mm |
| Pallet Wrapping Machine | Provide | Provide | Provide | Provide |
| Sand Dryer | Provide As Requirement | Provide As Requirement | Provide As Requirement | Provide As Requirement |
| HS Code | 8474390000 | 8474390000 | 8474390000 | 8474390000 |
(1)There are several materials discharging modes for selecting, which include the manual mode, electrical mode and pneumatic mode.
(2)The fiber can be rapidly separated by the high speed rotating blades.
(3)The air-phase balancing device is installed to mix the materials more even.
(4)The compound structure of paddles can largely reduce the cost of maintenance.
(5)The materials are discharged through the big gate, which can reduce the blind areas inside the mixer, make the discharging procedure cleaner and faster.
(6)It can mix the solid-solid (powder and power) and solid-liquid (powder and liquid), and also take drying operation.
(7)The speed of mixing is fast, it only takes about 2-3 minutes to mix the ordinary powders.
(8)The machine can be operated in confined space, which is running reliably and convenient in maintenance.
5. Application of MG Automatic Dry Mortar Mixing Machine Plant:
MG automatic dry mortar plant can be used to produce the following dry mortars: Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc. Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc. Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc.
6. Configuration Of MG Full Automatic Dry Mortar Mixing Machine Plant:
1. Aggregates storage bins, powder materials silos.
2. Screw conveyors, weighing scales
3. Bucket elevators
4. Full automatic batching system
5. Pre-mixing bin
6. Mixer(Installed with triaxial mixing vanes)
7. Finished products storage bins
8. Packaging system (Open gate/valve-gate type packing machine)
9. Dust removal system(impulse type)
10. Control system to inspect the level of powder materials
11. Steel frame, platform, ladder stand, barrier
12. Main control system
13. Air compressor system: The central air compressor
14. The gas phase equilibrium system
15. Bulk materials storage system: finished mixture tanks, bulk machine.
16. Drying system
17. Alarm system
7. Successful Projects
8. Our Company
Zhengzhou MG industrial Co., Ltd, the leader of Full Automatic dry mortar mixing equipment!
Zhengzhou MG industrial Co., Ltd, was verified by ISO9001 quality control system, awarded as Henan first-class science and technology enterprise by government. We were Henan observe quality and credibility enterprise union governing unit in 2012.
Our company engaged in the dry powder mixing equipment R&D, production, sales and construction, providing most efficient turnkey solutions to our clients in green building energy-saving insulation and green wall (building) materials manufacturing equipment, production technology and construction program.
Our main products include dry mortar production line, thermal insulation mortar production line, sand dryer, powder blending machine, concrete mixer, and others.
9. Our Service:
1) Unpon got your inquiry, We will reply to you in 24 hours.
2) Assist clients to prepare for the first construction scheme and supply foundation drawing.
3) Oversea installation and provide technical exchange, train client to operate the machine.
4) Supply spare and accessory parts at favorable price for long-term.
5) Spare part are original, authentic, good quality, can be avaible from stock, and sent to client, immediately by DHL, EMS, Fedex, and by air, gurantee client to receive it in shortest time. Strict site quality inspection system:
Installation captain inpection: Evaluate the installation level of dry mix mortar production line, Spot QA engineer inspection: Inspect the whole in installation process and key components.
Service engineer inspection: Inspect the debugging and running condition of whole production line.
