|Name:||Dry Mortar Gypsum Powder Mixing Equipment||Weight:||30T|
|Worker Required:||3-4 Person||Advantage:||PLC Control System|
|Weighing:||Automatic Weighing||Application:||Dry Mortar Mixing|
|Installation:||Engineer Oversea Provided||Packing Method:||Valve Port Packing Machine|
|Certification:||CE, BV, ISO9001:2008||Warrenty:||1 Year|

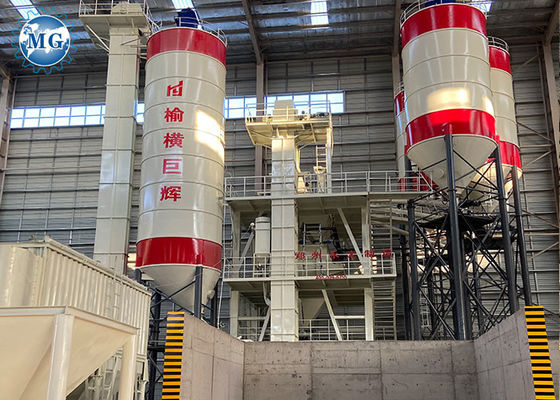

High Productivity Dry Mix Mortar Manufacturing Plant,
Gypsum Dry Mix Mortar Manufacturing Plant,
4T/H Dry Mix Mortar Manufacturing Plant
High Productivity Dry Mortar Powder Mixing Equipment For Gypsum Mortar Mixer
1. What is Dry mortar:
Dry mortar mainly refers to the blended masonry mortar, plastering mortar and floor tile mortar all for building construction and interior and exterior applications. Dry mix mortar or dry powder mortar is a kind of mixed product made by means of admixing the additives materials together with the dried and screened sand, cement, and fly ash in proportion.
2. Description Of MG Automatic Dry Mortar Tile Adhesive Mixing Equipment :
Dry mortar is widely used in the construction field. According to different applications, it is pre-mixed and packaged according to the formula. The advantages of stable and excellent product quality, convenient use and environmental protection are maintained. The production line consists of two parts: sand drying and screening section, material batching and packaging section. For the packaging system, the bag packaging machine or tank loading system can be selected according to the actual requirements of customers.
The Production Capacity You Can Choose
A) 3T/H Dry Mortar Mixing Machine
B) 4-5T/H Dry Mortar Mixing Machine
C) 6-8T/H Dry Mortar Mixing Machine
D) 10-12T/H Dry Mortar Mixing Machine
E) 20-25T/H Dry Mortar Mixing Machine
F) 30T/H Dry Mortar Mixing Machine
G) 40-50T/H Dry Mortar Mixing Machine
3. Mechnical principle of MG Automatic Dry Mortar Tile Adhesive Mixing Equipment:
The non-gravity mixer works in the principle of mixing the materials in air countercurrent. The double shaft paddles are installed inside the drum and rotated in the opposite direction to each other. Each of the paddles is designed in rational separation distance and angle degree through the scientific calculation. When the materials are thrown to the air current inside drum by the force from the rotating paddles, the non-gravity force will be instantaneously generated and the materials will be thrown to the opposite area. The space between the twins shafts will be formed a fluidized non-gravity area and an air eddy current, in the bottom part, an air flowing layer also will be formed inside the drum. As a result, the materials are taken the three-dimensional compound motions, in order to be evenly, rapidly and circularly mixed in all aspects.
4. Advantage of MG Automatic Dry Mortar Tile Adhesive Mixing Equipment:
1. With high-degree intelligence
2. Easy to operate
3. Adopting computer-weighed scale and computer-packed machine to guarantee the accuracy.
4. With stable performance and high efficiency.
5. With higher efficiency and low energy consumption and low manual cost.
6. Suitable for middle and large scale enterprise
7. With wide application: Firstly, full-automatic dry mortar production line can manufacture adhesive mortar such as specialized adhesive mortar of insulated compound system, ceramic tile adhesive agent and joint mixture, etc.
|Model||2000L Mixing plant||3000/4000L Mixing plant||6000L Mixing Plant||10000L Mixing Plant|
|Worker Required||2-3 person||3-4 person||3-4 person||3-4 person|
|Bag belt Conveyor||B500X5000mm||B500X5000mm||B500X5000mm||B500X5000mm|
|Pallet Wrapping Machine||Provide||Provide||Provide||Provide|
|Sand Dryer||Provide As Requirement||Provide As Requirement||Provide As Requirement||Provide As Requirement|
6. Configuration Of MG Full Automatic Dry Mortar Tile Adhesive Mixing Equipment:
1. Aggregates storage bins, powder materials silos.
2. Screw conveyors, weighing scales
3. Bucket elevators
4. Full automatic batching system
5. Pre-mixing bin
6. Mixer(Installed with triaxial mixing vanes)
7. Finished products storage bins
8. Packaging system (Open gate/valve-gate type packing machine)
9. Dust removal system(impulse type)
10. Control system to inspect the level of powder materials
11. Steel frame, platform, ladder stand, barrier
12. Main control system
13. Air compressor system: The central air compressor
14. The gas phase equilibrium system
15. Bulk materials storage system: finished mixture tanks, bulk machine.
16. Drying system
17. Alarm system
7. Our Company
Zhengzhou MG industrial Co., Ltd, the leader of Full Automatic dry mortar mixing equipment!
Zhengzhou MG industrial Co., Ltd, was verified by ISO9001 quality control system, awarded as Henan first-class science and technology enterprise by government. We were Henan observe quality and credibility enterprise union governing unit in 2012.
Our company engaged in the dry powder mixing equipment R&D, production, sales and construction, providing most efficient turnkey solutions to our clients in green building energy-saving insulation and green wall (building) materials manufacturing equipment, production technology and construction program.
Our main products include dry mortar production line, thermal insulation mortar production line, sand dryer, powder blending machine, concrete mixer, and others.
1, How about the investment of this project?
A: Our engineer can design the dry mortar plant as your requirement and your budget, different dry mortar plant investment are difference.
Low capacity low cost, we will provide you cost effective solutions as your requirement.
2, What's the difference between full automatic dry mortar plant and Semi-automatic dry mortar plant?
A: (1) Semi-automatic dry mortar plant is cheaper than full automatic dry mortar plant.
(2) Semi-automatic dry mortar plant do not need to equip silos while full automatic dry mortar equip material silos.
(3) Semi-automatic dry mortar is manual feeding and automatic weighing and packaging, Full automatic dry mortar plant is automatic feeding and automatic weighing and packaging.
3, How many people required to operate this dry mortar plant?
A: Usually 2-4 workers are enogh to operate this dry mortar plant.
4, What equipment and service you can provide?
A: We can provide you turnkey solution of dry mortar plant from working site planning to dry mortar machines, transportation, installation and training, formula of dry mortars, after-sales services, life time technical support etc.
5, What is the area required for this dry mortar plant?
A: According to the capacity of the dry mortar plant, the area required 300-100 m2.
6, What is the total power consumption (KW) of this dry mortar plant?
A: It is 20-80W based on the capacity of the dry mortar plant.
7, What is the capacity of your dry mortar plant?
A: We have dry mortar plant with capacity 3-30T/H as your requirement, and also we can customize the dry mortar plant as your capacity requirement.
8, How long is the guarantee period?
A: 12 months, within this period, we provide you spare parts and services for free.
9, Can you install the dry mortar plant in my country?
A: Yes, we will send engineers to your country for guiding installation and training your workers to operate the machine.
If you want to know more of our dry mortar plant, please send us inquiry or contact us directly.
