4-5T/H dry mortar plant for putty powder and tile grout
About MG Semi-automatic dry mortar plant:
MG Semi-automatic dry mortar plant is a new kind dry mortar plant, it use Europe technology and improved based on Simple dry mortar production line, it change the mixer from ribbon mixer to be double shaft paddle mixer, the mixing speed improved very much, it can mix one batc material within 3-5 minutes, the mixer also equo fly cut system, used for breaking additives, make sure the mixing more unformaly.
Semi-automatic dry mortar plant can realize manual feeding and automatic weighing and packing, the packing range of packing machine is 15-50KG per bag adjustable. This Semi-automatic dry mortar plant consist of two screw conveyors, one 2m3 capacity double shaft paddle mixer, one finish product hopper, one packing machine, one air compressor, one control cabinet and complete set of accessories.
Technical parameters of MG improved simple tile adhesive machine:
| Product name |
Semi-automatic dry mortar plant |
| Output Capacity |
4-5T/H |
| workshop required |
300-500 m2 |
| Automatic type |
Manual feeding & Automatic packing |
| Packing bag type |
Valve bag |
| Packaging speed |
6-10 seconds one 25KG bag |
| Worker required |
2-3 people |

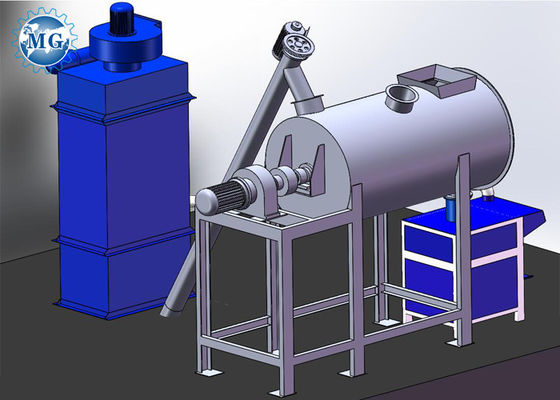

Configuration of MG Semi-automatic dry mortar plant:
1, Feed screw conveyor
2, Twin shaft mixer
3, Second screw conveyor
4, Finish product hopper
5, Finish product silo,
6, Packing machine
7, Air compressor
8, Control cabinet
Double shaft mixer equiped on MG Semi-automatic tile adhesive mortar machine:
Flow chart of MG 4-5T/H Semi-automatic dry mortar plant:
Packing machine equip on MG Semi-automatic tile adhesive machine:
Application of MG double shaft mixer improved Simple tile adhesive morter production line:
Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc.
Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildew-proof mortar, shielding mortar etc.
Machine prepared for customer of MG Semi-automatic dry mortar plant:
MG dry mortar plant installation photos in foreign countries:
FAQ:
1. Q: The ouput of dry powder mixer ?
A: 1t/ batch, 3-5minutes / batch, 4-5t/h.
2. Q: What is it used for ?
A: Mixing sand, cement, lime and plaster ,etc.
Production dry mortar; used for dry mortar production line.
3. Q: What is the delivery time ?
A: 1> in stock : within 7 days;
2> customize: 7-15 working days.
4. Q: Quality guarantee term ?
A: 12 months warranty, but not including man-made , wearing parts and operation mixtake. if any problem during one year, we will provide spare parts for free, but buyers should pay the freight.
