PLC Control Dry Mortar Production Line With Air Compressor System 8m * 8m * 10m

Certification
China Zhengzhou MG Industrial Co.,Ltd certification
China Zhengzhou MG Industrial Co.,Ltd certification
Customer Reviews
Dear Jason Liu It is very nice to hear from you as long time we no contact each other. By the way, the machine which we bought from you since 2017 we already assembled and being use from that time until now. So far there is no problem with the machine, so it can indicates that your machine is very good with the quality.

—— Ravin

Hello Zoey, Hope it is going well and safe with you guys in the strange new world we live in. It has been a year now since we installed Dry mortar plant and operating in SA. your machine is very good. As our output is increasing, I am reviewing options of installation of a second production line. Can you please send me a quote for a new plant ?

—— Francois

Hello Jason , how are you? We as a Company, we really appreciate your efforts on installing the plant on time, we really are thankful on your workers, they work hard to finish the plant and we helped them a lot but we finished on time without any problem... Also we tryed to be really nice and friendly with the workers so I hope they had a great t

—— Merita

Hi Zoey, All is well, How about you ? Yes, MG machine are working good. Thank you for your support. With this kind of machine we can make our own pre bag grout. Then consultants can’t complain anymore.

—— Prathamesh

I'm Online Chat Now

PLC Control Dry Mortar Production Line With Air Compressor System 8m * 8m * 10m

PLC Control Dry Mortar Production Line With Air Compressor System 8m * 8m * 10m
PLC Control Dry Mortar Production Line With Air Compressor System 8m * 8m * 10m
PLC Control Dry Mortar Production Line With Air Compressor System 8m * 8m * 10m PLC Control Dry Mortar Production Line With Air Compressor System 8m * 8m * 10m PLC Control Dry Mortar Production Line With Air Compressor System 8m * 8m * 10m

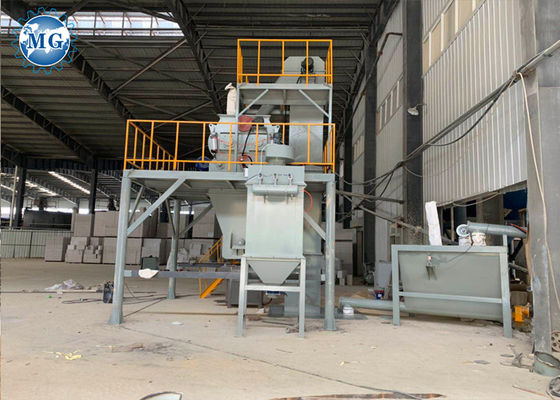

Large Image :  PLC Control Dry Mortar Production Line With Air Compressor System 8m * 8m * 10m

Product Details:
Place of Origin: China
Brand Name: MG
Certification: CE, ISO, SGS
Model Number: MG-3.7
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wooden box packing and bubble wrap packing
Delivery Time: 20-25 working days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 30 sets per month

PLC Control Dry Mortar Production Line With Air Compressor System 8m * 8m * 10m

Description
Name: Dry Mortar Production Line Atuomatic Type: Full Automatic
Condition: New Dimension: 8m*8m*10m
Installation Service: We Send Engineer To Oversea For Guiding Installation Worker Required: 3-4 Person
After-sales Services: Provide Control System: Computer And PLC Control
Workshop Required Area: 500-600 M2 Warranty: 12 Months
Highlight:

dry mix mortar production line

,

mortar mixing equipment

               2020 Tower type new product 10-30T per hour automatic dry mortar production line



Product description:

Full Automatic Dry Mortar Production Line, capacity 10-30t/h, is based on the latest Germany technology, this production line adopts automatic control system, its capacity at 30-100 thousand tons per year depended on different configuration.



Main Configuration of Full Automatic Dry Mortar Production Line

1) Sand drying system

2) Coarse material storage system

3) Automatic weighing system

4) Conveying system

5) Mixing system

6) Air compressor system

7) Packaging system

8) Dedusting system



Screw type air compressor and air storage tank used on automatic dry mortar production line:

PLC Control Dry Mortar Production Line With Air Compressor System 8m * 8m * 10m 0

Main Features of Full Automatic Dry Mortar Production Line



1. It features magnificent appearance, good quality, high productivity and accurate mortar proportioning.

2. The dry mix mortar production line uses a centralized control system, making the equipment easy to operate.

3.According to the layout type, it can be classified into tower type, self tower type and series type. Its up to the customers workshop area. The needed area is 500~5000m2.
4. We can provide one-stop service from design to installation according to our customers’ specific requirement.
PLC Control Dry Mortar Production Line With Air Compressor System 8m * 8m * 10m 1



Advantage:

Reasonable design, ground level installation, high production efficiency,stable performance,2-5 people can operate, only covers an area of about 15m2,moderate price, reasonable configuration, low maintenance cost, is a very ideal dry powder mortar production equipment.



Application:
This automatic ceramic tile manufacturing plant can produce following dry mortar
Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, tile glue, anchorage mortar etc.
Decoration mortar: Decorative plaster, Thin set coating, inner and outer wall putty, Screed mortar, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, AAC jointing mortar, dry sand mixture, repair mortar, mildewproof mortar, shielding mortar etc.


Technical parameter of MG full automatic dry mortar production line:

Model Output Equipment height Occupied area Manpower Batching and Packaging
Simple type 3-4t/h 3-4m 20m2 2-3 person

Manual Batching

Automatic packaging

Improved type 4-5/h 3-4m 20m2 2-3 person

Manual Batching

Automatic packaging

Semi-Automatic type 5-8t/h 6-8m 50-60m2 3-4 person

Manual Batching

Automatic packaging

Full-Automatic type 10-30t/h 8-13m 60-100m2 3-4 person

Automatic Batching

Automatic packaging





Company services:



Pre-sales service:
Design - discuss (email/phone/chat tools) - provide solutions - access invitations and receptions - create major trust - contracts;


Sales service:
Send confirmation design and foundation drawings to customers;
Provide customers with photos and videos of the production process;
Pre-assemble the main components of the machine and test them;
Draw color and logo according to customer's requirement;
Arrange customers to check the finished products;
Pre-order logistics locations to ensure on-time delivery.
Monitor the loading and packing machine in the container, such as the packing of wooden cases, steel wire reinforcement.


After-sales service:
Tracking ship and estimated date of arrival;
Send all necessary documents and assist to retrieve the goods smoothly;
Dispatch experienced engineers to installation and commission, training;
Regular learning of equipment operation;
Remote control is readily available;
Guarantee: 12 months;
Spare parts: sent by DHL/fedex/TNT.
