Product Details:
|
| Condition: | New | Dimension(l*w*h): | 8*8*8 |
|---|---|---|---|
| Warranty: | 2 Years | Application: | Dry Mortar Production Line, Dry Mortar Mixing, Sand/cement/paint, Tile Adhesive Plant, And Insulation Morta |
| Voltage: | 220-440v | Weight: | 10-15T/H |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Online Support, Video Technical Support | Advantage: | Convenient Operation, Convenient Maintenance, Professional Manufacture |
| Packaging: | Packaging | Batching And Weighting: | Automatic Feeding |
| Silo: | As Customer's Choice | Productivity: | 10-20t/h |
| Highlight: | dry mortar machine,dry mortar equipment |
||

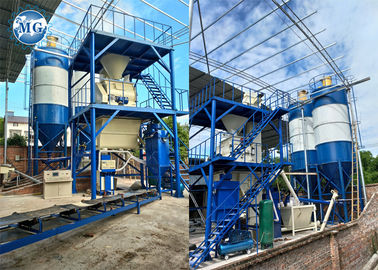

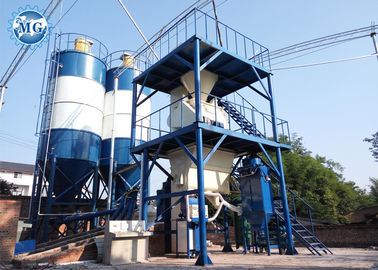

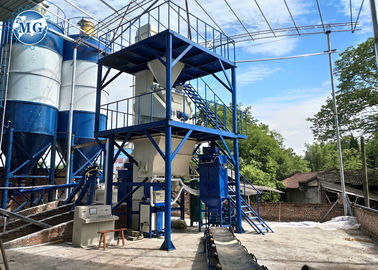

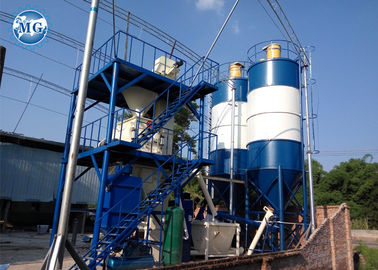

4. Automatic Dry Mortar Mixing Machine 10t/H Premixed Dry Mortar Mixer Production Line
1. Main Equipment of MG full Automatic Dry Mortar Mixing Machine:
MG Full Automatic Dry Mortar Plant is based on the latest design concept in Europe, this production adopts the advanced PLC computer auto-control system, which production capacity can reach 10-70 tons per hour depend on the system configuration. Normally the full automatic dry mortar plant should consists of raw material storage system, conveying and weighting system, mixing system, packing system, air compressor system, dust collecting, PLC control system, etc..
Mixer for continuous mixing. The finished product in conformity with mixing accuracy requirements can be sent to the finished products bin shortly after mixed. Moreover, there is design with automatic rationing and packaging machine at the bottom of finished products bin, allowing for synchronous auto-packaging operation. Featured with easy and convenient operation, high efficiency, it can both obviously reduce labor intensity and effectively reduce dust pollution.
2. Model of MG full Automatic Dry Mortar Mixing Machine:
| Model | 2000L Mixer | 3000/4000L Mixer | 6000L Mixer Plant | 10000L Mixer plant |
| Capacity | 10-12T/H | 15-30T/H | 30-40T/H | 50-60T/H |
| Machine height | 8-9m | 9-10m | 11-12m | 13-15m |
| Total power | 80-90KW | 90-100KW | 100-120KW | 120-150KW |
| Worker required | 2-3 person | 3-4 person | 3-4 person | 3-4 person |
| Workshop required | 500-600m2 | 600-800m2 | 800-1000m2 | 1000-1500m2 |
| Bag belt conveyor | B500X5000mm | B500X5000mm | B500X5000mm | B500X5000mm |
| Pallet wrapping machine | Provide | Provide | Provide | Provide |
| Sand dryer | As requirement | As requirement | As requirement | As requirement |
3. Packing and Shippment of MG full Automatic Dry Mortar Mixing Machine:
4. Application of MG Automatic Dry Mortar Mixing Equipment:
Dry mix mortars are used in many different applications in the construction of a building. Some of these applications are universal and some others are specific to certain regions or countries. Dry Mortar Mixing Equipment can produce the following dry mortars:
| Bonding mortar | Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc |
| Decoration mortar | Decorative plaster, inner and outer wall putty, colorful decoration mortar etc |
| Protection mortar | Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildew proof mortar, shielding mortar etc. |
We are professional manufacturer of dry mortar plant and sand dryer plant over 20 years, providing turnkey project from working site design, foundation drawing, installation and debugging, worker training, latest formula, chemicals, after-sale and life time technical support. Further details can contact Ms. Zoey phone/wechat/whatsapp: +86 15617507836
