Product Details:
|
| Dimension(l*w*h): | Depending | Application: | Dry Mortar Production Line,Dry Mortar Mixing |
|---|---|---|---|
| Voltage: | 220V Or Customized | Warranty: | 12 Months |
| Packaging: | High Standard Packaging Guarantee | Capacity: | 10-120t/h |
| Mixing Time: | 3-5 Minutes | Batching And Weighting: | Automatic Feeding |
| Silo: | As Customer's Choice | Sand Dryer: | Depends |
Dry Powder Mixer Dry Mortar Plant Industrial Cement Mix Production Machine
Production description of Dry Mortar Plant:
MG Full Automatic Dry Mortar Plant is based on the latest design concept in Europe, this production adopts the advanced PLC computer auto-control system, which production capacity can reach 10-70 tons per hour depend on the system configuration. Normally the full automatic dry mortar plant should consists of raw material storage system, conveying and weighting system, mixing system, packing system, air compressor system, dust collecting, PLC control system, etc..
Mixer for continuous mixing. The finished product in conformity with mixing accuracy requirements can be sent to the finished products bin shortly after mixed. Moreover, there is design with automatic rationing and packaging machine at the bottom of finished products bin, allowing for synchronous auto-packaging operation. Featured with easy and convenient operation, high efficiency, it can both obviously reduce labor intensity and effectively reduce dust pollution.
:
Detail configuration and usage of Dry Mortar Plant:
| No. | Product Name | Model | Function and usage |
| 1 | Bucket elevator |
Chain type lifting capacity: 15-100T/H Belt type lifting capacity: 10-35T/H |
An high efficient vertical lifting device to carry Granular material from ground to silos top or premix hopper, powder material usually feeding by pump truck. |
| 2 | Detachable Storage System | Volume: 60T, 100T 150T, etc. | To store dry raw material powder such as cement, sand, fly ash, caco3, slag etc. |
| 3 | Screw Conveyor |
Size: Φ165/Φ219/Φ273*6000m |
An horizontal conveying device to carry the materials to the weighting hopper. |
| 4 | Weighting System | Volume: 2m3/3m3/4m3/6m3 | Automatic weighting different materials device |

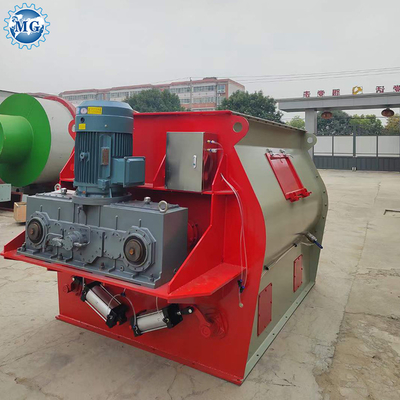

| 5 | Twin Shaft Agravic Mixer |
Mixing time:3-5min/batch Mixing capacity: 2m3/3m3/4m3/6m3/8m3/10m3 |
To mix materials uniformly and high efficiency, MG fly cutter system in the top of mixer will cut and break up the fibre easily. |
| 6 | Finished product silo | Volume: 2m3/3m3/4m3/6m3 | To store the end product and preparing for packing. So that the weighting system, mixing system and packing system can work constantly. |

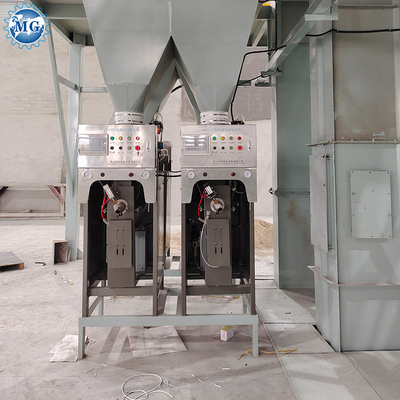

| 7 | Automatic weighing packaging machine |
Impeller valve type Pneumatic valve type Packing range: 15-50kg/bag, packing accuracy can be + / - 0.5kg.
|
To pack the end product and automatically sewing, it can realize automatically weighing and packaging.
|
| 8 | PLC Control cabinet | PLC touchable screen or computer operation. | To operate and control all machine parts. The touchable display can input and record more than 10 different kinds of formula. |
| 9 | Air compressor | Common type or screw compressor type | Provide air source for silos, dust collectors, premix hopper, twin shift agravic mixer, end product hopper, packing machines, etc. |

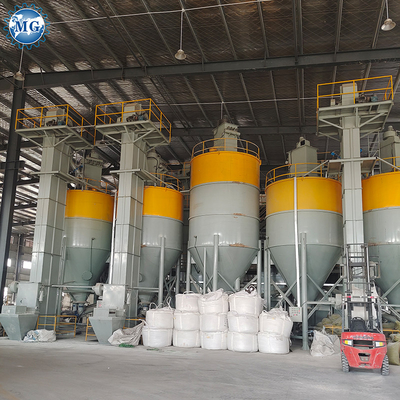

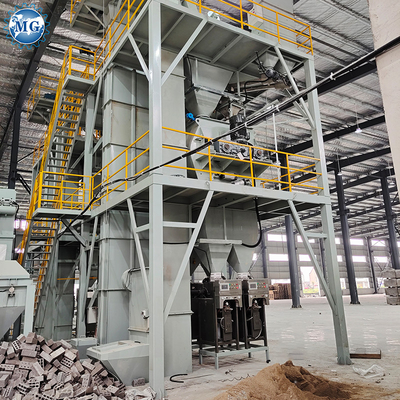

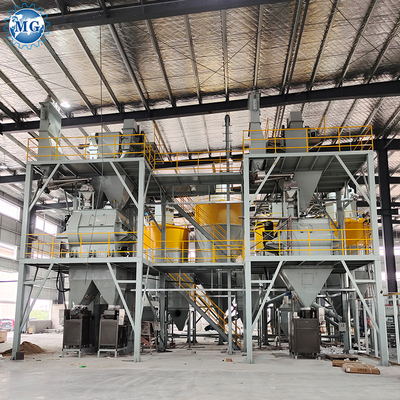

MG dry Mortar Plant details and site:
