Product Details:
|
| Product Name: | Dry Mortar Mixer Machine | Material: | Carbon Steel |
|---|---|---|---|
| Power: | 37-80KW | Capacity: | 10-40T/H |
| Discharge Way: | Automatic Cylinder Operation | Voltage: | 380V/440V/415V |
| Mixing Speed: | 30-45r/min | Control System: | PLC |
| High Light: | 10TPH Dry Mortar Mixer Machine,Carbon Steel Dry Mortar Mixer,80KW Dry Mortar Steel Mixer |
||
10TPH High Cost Effective Good Performance Dry Mortar Mixer Machine
Descriptions of MG Dry Mortar Mixer Machine:

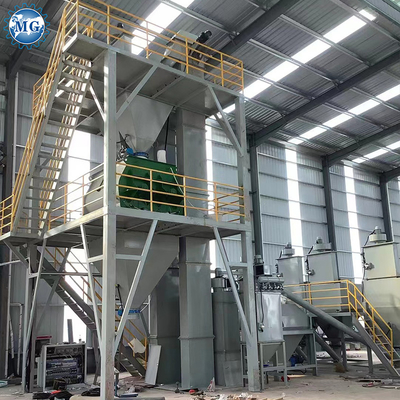

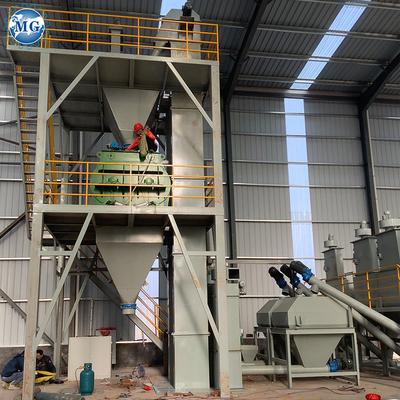

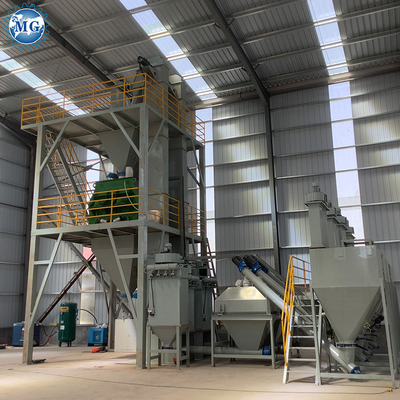

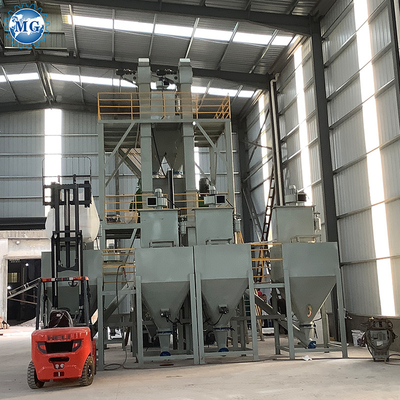

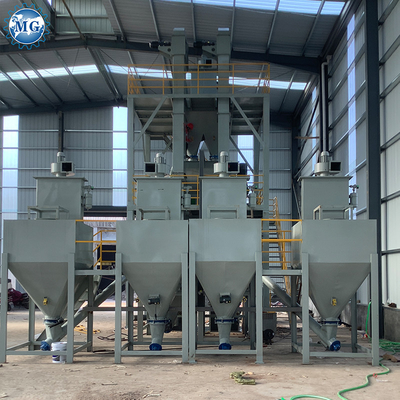

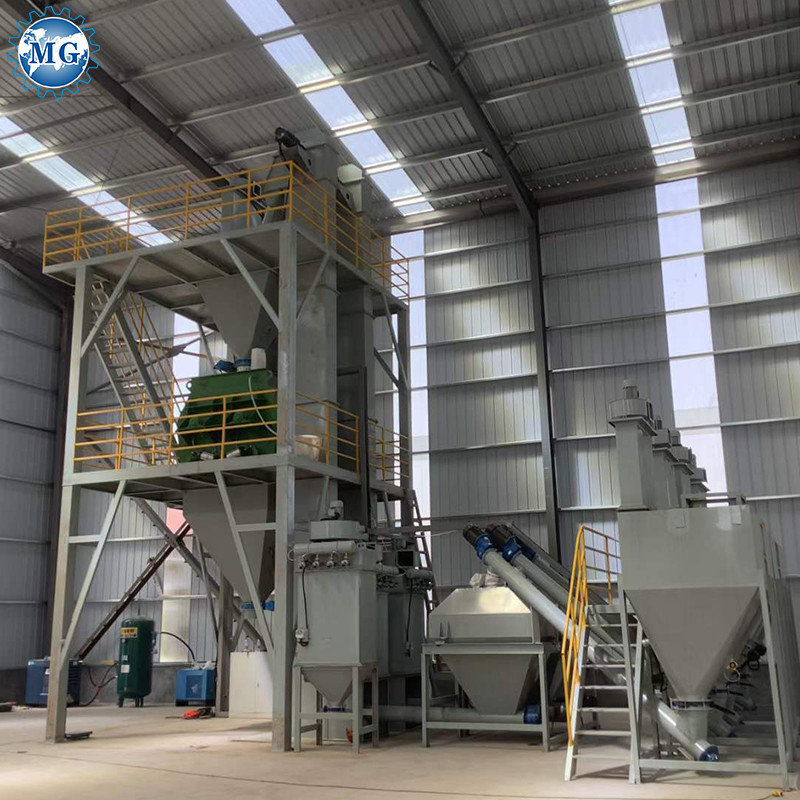

MG Dry Mortar Mixer machine is based on the latest design concept in Europe, this production adopts the advanced PLC computer auto-control system, which production capacity can reach 10-50 tons per hour depend on the system configuration. Normally the full automatic dry mortar mixer machine plant should consists of raw material storage system, conveying and weighting system, mixing system, packing system, air compressor system, dust collecting, PLC control system, etc.
Mixer for continuous mixing. The finished product in conformity with mixing accuracy requirements can be sent to the finished products bin shortly after mixed. Moreover, there is design with automatic rationing and packaging machine at the bottom of finished products bin, allowing for synchronous auto-packaging operation. Featured with easy and convenient operation, high efficiency, it can both obviously reduce labor intensity and effectively reduce dust pollution.
Detail configuration of MG Dry Mortar Mixer Machine:
| No. | Product Name | Model | Function and usage |
| 1 | Bucket elevator |
Chain type lifting capacity: 15-100T/H Belt type lifting capacity: 10-35T/H |
An high efficient vertical lifting device to carry Granular material from ground to silos top or premix hopper, powder material usually feeding by pump truck. |
| 2 | Detachable Storage System | Volume: 60T, 100T 150T, etc. | To store dry raw material powder such as cement, sand, fly ash, caco3, slag etc. |
| 3 | Screw Conveyor |
Size: Φ165/Φ219/Φ273*6000m |
An horizontal conveying device to carry the materials to the weighting hopper. |
| 4 | Weighting System | Volume: 2m3/3m3/4m3/6m3 | Automatic weighting different materials device |
| 5 | Twin Shaft Agravic Mixer |
Mixing time:3-5min/batch Mixing capacity: 2m3/3m3/4m3/6m3/8m3/10m3 |
To mix materials uniformly and high efficiency, MG fly cutter system in the top of mixer will cut and break up the fibre easily. |
| 6 | Finished product silo | Volume: 2m3/3m3/4m3/6m3 | To store the end product and preparing for packing. So that the weighting system, mixing system and packing system can work constantly. |
| 7 | Automatic weighing packaging machine |
Impeller valve type Pneumatic valve type Packing range: 15-50kg/bag, packing accuracy can be + / - 0.5kg.
|
To pack the end product and automatically sewing, it can realize automatically weighing and packaging.
|
| 8 | PLC Control cabinet | PLC touchable screen or computer operation. | To operate and control all machine parts. The touchable display can input and record more than 10 different kinds of formula. |
| 9 | Air compressor |
Common type or screw compressor type |
Provide air source for silos, dust collectors, premix hopper, twin shift agravic mixer, end product hopper, packing machines, etc. |
(7)The speed of mixing is fast, it only takes about 2-3 minutes to mix the ordinary powders.
(8)The machine can be operated in confined space, which is running reliably and convenient in maintenance.
We are professional manufacturer of dry mortar plant and sand dryer plant over 20 years, providing turnkey project from working site design, foundation drawing, installation and debugging, worker training, latest formula, chemicals, after-sale and life time technical support.
