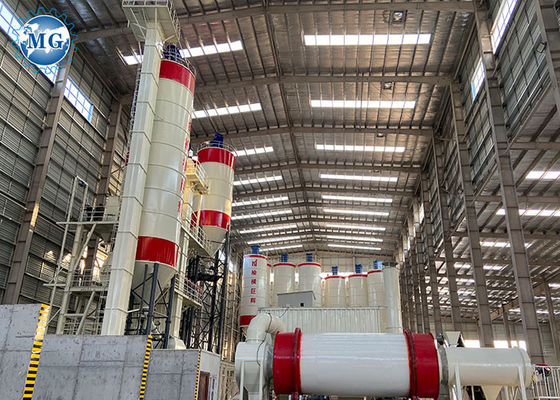

Silos Equipped 10-20 TPH Ceramic Tile Adhesive Machine Dry Mortar Mixer Machine

Silos Equipped 10-20 TPH Ceramic Tile Adhesive Machine Dry Mortar Mixer Machine
Silos Equipped 10-20 TPH Ceramic Tile Adhesive Machine Dry Mortar Mixer Machine
Silos Equipped 10-20 TPH Ceramic Tile Adhesive Machine Dry Mortar Mixer Machine Silos Equipped 10-20 TPH Ceramic Tile Adhesive Machine Dry Mortar Mixer Machine Silos Equipped 10-20 TPH Ceramic Tile Adhesive Machine Dry Mortar Mixer Machine Silos Equipped 10-20 TPH Ceramic Tile Adhesive Machine Dry Mortar Mixer Machine

Large Image :  Silos Equipped 10-20 TPH Ceramic Tile Adhesive Machine Dry Mortar Mixer Machine

Product Details:
Place of Origin: Henan, China
Brand Name: MG
Certification: CE BV ISO 9001:2008
Model Number: MGDM-3.7
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard seaworthy packing-Wooden box packing and bubble wrap packing
Delivery Time: 20-25 working days from paid advance payment
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 30 Sets/Months

Silos Equipped 10-20 TPH Ceramic Tile Adhesive Machine Dry Mortar Mixer Machine

Description
Name: Dry Mortar Mixer Machine Tile Adhesive Mixing Plant Model: MGDM-3.7
Power: 90kw Mixer Type: Twin Shaft Mixer
Mixing Time: 3-5 Minutes Dimension: 8000X8000X8000mm
Advantage: 20 Years' Professional Experience Installation: Provided
High Light:

20 TPH Ceramic Tile Adhesive Machine

,

Silos Equipped Ceramic Tile Adhesive Machine

,

Silos Equipped Dry Mortar Mixer Machine



Dry Mortar Mixer Machine Ceramic Tile Adhesive Mixing Plant



1. Description Of MG Automatic Dry Mortar Mixer Machine Ceramic Tile Adhesive Mixing Plant:



MG Dry mortar plant is a set of equipment that is designed to mix dried sand, cement, thickening powder, fly ash, and other functional additives together according to different recipes. The plant produces bagged or bulks dry mortar, which can be applied directly after mixed proportionally into the water and stirred for a while.

The Production Capacity You Can Choose



A) 3t/h dry mortar production line

B)4-5t/h dry mortar production line

C)6-8t/h dry mortar production line

D)10-12t/h dry mortar production line

E)20-25t/h dry mortar production line

F)30t/h dry mortar production line

G)40-50t/h dry mortar production line



2. Mechnical principle of MG Automatic Dry Mortar Mixer Machine Ceramic Tile Adhesive Mixing Plant:



Dry Mortar Machines Dry Mortar Mixer Line: First the raw material is put into the feed hopper according to mixture ratio, and then, through the action of control system, the equipment can realize automatic feeding, automatic mixing and automatic rationing and packaging.



Ceramic Tile Adhesive Mixing Plant

3. Configuration Of MG Full Automatic Dry Mortar Mixer Machine Ceramic Tile Adhesive Mixing Plant

  • 1. Aggregates storage bins, powder materials silos.
  • 2. Screw conveyors, weighing scales
  • 3. Bucket elevators
  • 4. Full automatic batching system
  • 5. Pre-mixing bin
  • 6. Mixer(Installed with triaxial mixing vanes)
  • 7. Finished products storage bins
  • 8. Packaging system (Open gate/valve-gate type packing machine)
  • 9. Dust removal system(impulse type)
  • 10. Control system to inspect the level of powder materials
  • 11. Steel frame, platform, ladder stand, barrier
  • 12. Main control system
  • 13. Air compressor system: The central air compressor
  • 14. The gas phase equilibrium system
  • 15. Bulk materials storage system: finished mixture tanks, bulk machine.
  • 16. Drying system
  • 17. Alarm system

dry mix mortar plant

3. Features of MG Automatic Dry Mortar Mixer Machine Tile Adhesive Mixing Plant:



1.It features magnificent appearance, good quality, high productivity and accurate mortar proportioning.

2. The dry mortar production line uses a centralized control system, making the equipment easy to operate.

3. According to the layout type, it can be classified into tower type, self tower type and series type. Its up to the customers workshop area. The needed area is 500~5000m2.

4. We can provide one-stop service from design to installation according to our customers' specific requirement.



Ceramic tile adhesive mixing plant


5. Parameter of MG Full Automatic Dry Mortar Mixer Machine Tile Adhesive Mixing Plant:


Model 2000L Mixing plant 3000/4000L Mixing plant 6000L Mixing Plant 10000L Mixing Plant
Capacity 10-12T/H 15-30T/H 30-40T/H 50-60T/H
Machine Height 8-9m 9-10m 11-12m 13-15m
Total Power 80-90KW 90-100KW 100-120KW 120-150KW
Worker Required 2-3 person 3-4 person 3-4 person 3-4 person
Workshop Required 500-600㎡ 600-800㎡ 800-1000㎡ 1000-1500㎡
Bag belt Conveyor B500X5000mm B500X5000mm B500X5000mm B500X5000mm
Pallet Wrapping Machine Provide Provide Provide Provide
Sand Dryer Provide As Requirement Provide As Requirement Provide As Requirement Provide As Requirement
HS Code 8474390000 8474390000 8474390000 8474390000


6.Finished product


(1).Raw material :
1. Cementing material: cement, lime, plaster.
2. Aggregate: yellow sand, quartz sand, limestone, dolomite, expanded perlite etc.
3. Mineral admixture: industrial byproduct, industrial slag, fly ash, pozzolana, fine silica powder etc.
4. Water-retention and thickening material.
5. Chemical additives.
(2)This machine can produce the following dry mortars:
1) Masonry mortar
2) Thin and smooth wall mortar
3) Hand-plastering screeding mortar
4) Colored coating mortar
5) Water-proof mortar
6) Plaster powder
7) Wall plastering mortar
8) Ceramic tile adhesive mortar
9) Self-leveling mortar
10) Heat-preservation mortar.
11) Repairing mortar
12) Gap filler



7. Successful Projects

Dry Mortar Mixer Machine

8. Our Company



Zhengzhou MG industrial Co., Ltd, the leader of Full Automatic dry mortar mixing equipment!



Zhengzhou MG Industrial Co,. Ltd, the leader in pre-mixed dry mortar mixing plant, providing you with new and refurbished building solutions over 70 countries around the world.

Zhengzhou MG was founded in 2000, located in the beautiful city of Zhengzhou, which is an integrated high-tech enterprise of R&D, production, sale and construction in dry mortar mixing equipment. We are an executive member of Chinese private Technology Promotion Committee and building materials Experts Association. As an National top rank building Mechanical Enterprise, we're certified by ISO9001 quality management system, and we honored to be the executive director of Henan Building Energy Conservation Committee.



Our company engaged in the dry powder mixing equipment R&D, production, sales and construction, providing most efficient turnkey solutions to our clients in green building energy-saving insulation and green wall (building) materials manufacturing equipment, production technology and construction program.



Our main products include dry mortar production line, thermal insulation mortar production line, sand dryer, powder blending machine, concrete mixer, and others.



9. Our Service:



1) Unpon got your inquiry, We will reply to you in 24 hours.

2) Assist clients to prepare for the first construction scheme and supply foundation drawing.

3) Oversea installation and provide technical exchange, train client to operate the machine.

4) Supply spare and accessory parts at favorable price for long-term.

5) Spare part are original, authentic, good quality, can be avaible from stock, and sent to client, immediately by DHL, EMS, Fedex, and by air, gurantee client to receive it in shortest time. Strict site quality inspection system:

Installation captain inpection: Evaluate the installation level of dry mix mortar production line, Spot QA engineer inspection: Inspect the whole in installation process and key components.

Service engineer inspection: Inspect the debugging and running condition of whole production line.
