MG Tower Type Tile Adhesive Machine Full Automatic Tile Adhesive Manufacturing Plant

MG Tower Type Tile Adhesive Machine Full Automatic Tile Adhesive Manufacturing Plant
MG Tower Type Tile Adhesive Machine Full Automatic Tile Adhesive Manufacturing Plant
MG Tower Type Tile Adhesive Machine Full Automatic Tile Adhesive Manufacturing Plant MG Tower Type Tile Adhesive Machine Full Automatic Tile Adhesive Manufacturing Plant MG Tower Type Tile Adhesive Machine Full Automatic Tile Adhesive Manufacturing Plant

Large Image :  MG Tower Type Tile Adhesive Machine Full Automatic Tile Adhesive Manufacturing Plant

Product Details:
Place of Origin: China
Brand Name: MG
Certification: CE, ISO9001:2008
Model Number: MGDM-3.7
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Stand seaworthy packaging
Delivery Time: 20-25 working days
Payment Terms: T/T, L/C, D/A, D/P, MoneyGram, Western Union
Supply Ability: 20 sets per month

MG Tower Type Tile Adhesive Machine Full Automatic Tile Adhesive Manufacturing Plant

Description
Product Name: Full Automatic Tile Adhesive Manufacturing Plant Dimensions: 10mX10mX12m
Workers Required: 3-4 People Voltage: 220V,380V, 415V,440V, 50/60Hz Or Customized
Warranty: 12 Months Capacity: 10-30T/H
After-sales Services: Engineer Available To Service Machinery Overseas Machine Occupy Area: 100-200m2
Workshop Required Area: 800-1200m2 Dosing And Packing: Fully Automatic And PLC Control
High Light:

tile adhesive manufacturing plant

,

tile adhesive production line

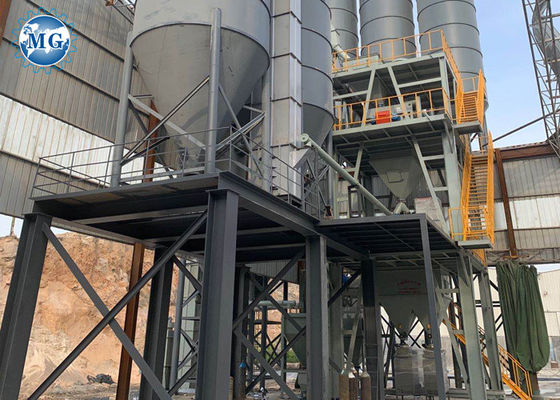

   MG tower type full automatic tile adhesive manufacturing plant Export to UAE



Working process of MG full automatic tile adhesive manufacturing plant:



MG 10-30t/h tile adhesive manufacturing plant,the pretreatment raw materials will be lifted into raw material silo, then raw material is flowing through the hopper, Next, by computer ingredients, screw conveyor metering, mixing and packaging machine package to bags or in bulk or finished goods warehouse into the car storage process into the final product.



10-30T/H tile adhesive manufacturing plant is widely used to produce all kinds of mortar: wall putty mortar (Skim Coat), Rendering Mortar, Masonry Mortar,Tile Adhesive Mortar, Waterproof Mortar, Screed Mortar, Thermal Insulation Mortar, etc



Main structure of MG full automatic tile adhesive manufacturer manufacturing plant:
Raw material storing system, automatic weighing system, conveying system, mixing system, pneumatic system, packing system and dedusting system. the main control system administrate the production order based on fixed formula ratio, thus the production line will dosing the coarse materials from storage silos, after automatic weighing, the material will enter in premix tank and high efficient agravic mixer continuously, to mix in a shortperiod(3-5min).The well mixed material will discharge into the holding tank, which will make secondary mixing, ther down to new designed automatic filling and packing machine, the packing machine work efficiently based on fixed time and volume, it increase the capacity sharply, well packed finished mortar will be transfered to finished mortar area, ready fo sale.



Technical parameters of MG automatic tile adhesive manufacturering plant:



Automatic tile adhesive manufacturing plant
Capacity
10-30T/H(depending on machine configuration)
Machine occupy area 100-200m2
Wrapping machine and palletizer Can be equippped as customer requirement
Number of circles/hour
15-20(depending on applied formula)
workshop Area 1000-1500m2
Packing type

Bag packing or bulk loading as requirement







Our company Advantages:



We mainly engaged in providing turn-key service to numerous customerswith engergy-saving and efficient practical solutions. Main advantage of dry powder mixing equipment from Zhengzhou MG  (compared with other suppliers):



1. Over 20 years experience in this line. since 2000, Zhengzhou MG dedicated in the research and development of dry powder mixing equipment for decades, we are in a leading position in this trade;



2. Qe provide to customers with combat experience of decade years of construction management and multiple efficient project solution.



3. The special additives from Zhengzhou MG guranteed the quality of dry mortar from our clients.



We promise to all customers that: upon you choose our services and products, we will provide the first-class product quality, latest technology in mortar formula, and special additives; we ensure the good quality of dry mortar produced by our equipment.



Features of MG fully automatic tile adhesive manufacturing plant:

1, A high degree of intelligence. It is controlled by the control system and realizes automatic automation of automatic batching, automatic weighing, automatic feeding, automatic mixing and automatic packaging.

2, The ingredients are accurate, can automatically calculate the error and automatically correct.

3, The use of tower layout structure, shorten the transmission distance and increase production efficiency.

4. The use of a biaxial non-gravity mixer( Twin shaft mixer) has high mixing uniformity, and materials with large differences in physical properties such as specific gravity, particle size and shape do not easily segregate when mixed in the mixer.

5, The control system man-machine dialogue is simple and easy to operate.

6. With strong environmental protection, colleagues who reduce the labor intensity of their staff effectively improve the work environment in the working area.



Application of MG automatic tile adhesive manufacturing plant:

The tile adhesive manufacturing plant can produce the following dry mortars: Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc. Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc. Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc.



Our services:

1. Well-trained and experienced staff to answer all your inquiries in fluent English and Russia.

2. We will send our professional engineers to you country and help install the plant , train your worker to operate the plant 3. OEM & ODM is welcome. OEM brand is available.

4. If you have any idea or demand, we can provide the customization service.

5. Protection of your martket area, ideas of design and all your private information.

6. We will supply the spare parts to insure the quality of our plant.

7. Your inquiry will be replied within 24 hours.

8. Provide following up after-sales services. We will dispatch our serviceman to solve the problem for you, if you have questions about our plant.

MG Tower Type Tile Adhesive Machine Full Automatic Tile Adhesive Manufacturing Plant 0

MG Tower Type Tile Adhesive Machine Full Automatic Tile Adhesive Manufacturing Plant 1

MG Tower Type Tile Adhesive Machine Full Automatic Tile Adhesive Manufacturing Plant 2

MG full automatic tile adhesive manufacturing plant loading to foreign customers:

MG Tower Type Tile Adhesive Machine Full Automatic Tile Adhesive Manufacturing Plant 3

MG Tower Type Tile Adhesive Machine Full Automatic Tile Adhesive Manufacturing Plant 4



FAQ:

1, How about the investment of this project?

A: Our engineer can design the dry mortar plant as your requirement and your budget, different dry mortar plant investment are difference.

Low capacity low cost, we will provide you cost effective solutions as your requirement.



2, What's the difference between full automatic dry mortar plant and Semi-automatic dry mortar plant?

A: (1) Semi-automatic dry mortar plant is cheaper than full automatic dry mortar plant.

(2) Semi-automatic dry mortar plant do not need to equip silos while full automatic dry mortar equip material silos.

(3) Semi-automatic dry mortar is manual feeding and automatic weighing and packaging, Full automatic dry mortar plant is automatic feeding and automatic weighing and packaging.



3, How many people required to operate this dry mortar plant?

A: Usually 2-4 workers are enogh to operate this dry mortar plant.



4, What equipment and service you can provide?

A: We can provide you turnkey solution of dry mortar plant from working site planning to dry mortar machines, transportation, installation and training, formula of dry mortars, after-sales services, life time technical support etc.



5, What is the area required for this dry mortar plant?

A: According to the capacity of the dry mortar plant, the area required 300-100 m2.



6, What is the total power consumption (KW) of this dry mortar plant?

A: It is 20-80W based on the capacity of the dry mortar plant.



7, What is the capacity of your dry mortar plant?

A: We have dry mortar plant with capacity 3-30T/H as your requirement, and also we can customize the dry mortar plant as your capacity requirement.



8, How long is the guarantee period?

A: 12 months, within this period, we provide you spare parts and services for free.



9, Can you install the dry mortar plant in my country?

A: Yes, we will send engineers to your country for guiding installation and training your workers to operate the machine.



If you want to know more of our dry mortar plant, please send us inquiry or contact us directly.



We are professional manufacturer of dry mortar machines, our company dedicated in this field for more than 20 years, we alreays provide our customer turnkey project of dry mortar plant from working site planning to machine installation and commissioning, formula, opeation training, technical support etc. Escort for your sucess!
