220V 380V 440V Cement Bag Packing Machine For Automatic Tile Adhesive Plant

220V 380V 440V Cement Bag Packing Machine For Automatic Tile Adhesive Plant
220V 380V 440V Cement Bag Packing Machine For Automatic Tile Adhesive Plant 220V 380V 440V Cement Bag Packing Machine For Automatic Tile Adhesive Plant

Large Image :  220V 380V 440V Cement Bag Packing Machine For Automatic Tile Adhesive Plant

Product Details:
Place of Origin: China
Brand Name: MG
Certification: CE ISO9001:2008
Model Number: MGDM-4.1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wooden box packaging
Delivery Time: 5-7 working days
Supply Ability: 100 Sets per month

220V 380V 440V Cement Bag Packing Machine For Automatic Tile Adhesive Plant

Description
Name: Cement Bag Packing Machine Condition: New
Place Of Origin: Henan, China (Mainland) Warranty Period: 12 Months
Application: Dry Mortar Powder Color: Blue, Gray, Red, Yellow Or Customized
Weighing Accuracy: >99.9% Automatic Grade: Automatic
Brand: MG Model: MGDM-4.1
Advabtage: Easy Maintenance
High Light:

cement bagging machine

,

cement packaging machines

  220/380/440 Vatagle Cement Bag Packing Machine in Automatic Tile Adhesive Plant



Product description:



I. Valve Port Packaging Machine adopts LN965A15-J weighing controller, which is a precision intelligent instrument, whose main function is providing quantitative automatic control after for the valve port packing machine such as chemical, cement and food so on.
II. The advantage are easy operation, easy calibration, stable performance, double valve and high precision. It adopts dual-panel design with good anti-jamming capability, which can be used reliably in complex and harsh environment.



LN965A15-J type batching controller gather the analog signal from sensor, after CREE XLamp integrated process to the signal data,the weight of the Weighed material will be showed by the LED.While the weight date will be compared with setting after High-speed computing. If the weight achieve the setting, the controller will output signal to the equipment, thus realizing intelligent actions like stopping feeding and falling bags.



Advantages of Tile Adhesive Dry Mortar Packing Machine:



1.Automatic weighing and packing system, weighing accurately;



2.Small size and light quality, moving and installation conveniently;
3.Steady performance, easy to operate and maintenance;
4.High automation, labor-saving and increase efficiency.



Application of MGDM-4.1​ Valve Port Cement Bag Packing Machine:



MGDM-4.1 Automatic Valve Port Powder Packaging Machine is a kind of high utility of dry mortar packaging machinery, can be used for packaging dry mortar and other powder or particle materials, just as cement, dry mortar, fly ash, lime, calcium carbonate, talcum powder, gypsum, kaolin, carbon black, alumina, fire materials powder and granule materials.



Technical parameters of MGDM-4.1​ Packing Machine:





Weighting Range  10-15 kg adjustable
Packing Speed 5-6s/bag
Accuracy >99.9%
Packing Bag

       Plastic, Paper,Woven bag

Filling Technology Impeller Type,Screw Type
Power Supply 3kw
Air Compressor 0.5-0.8 Mpa

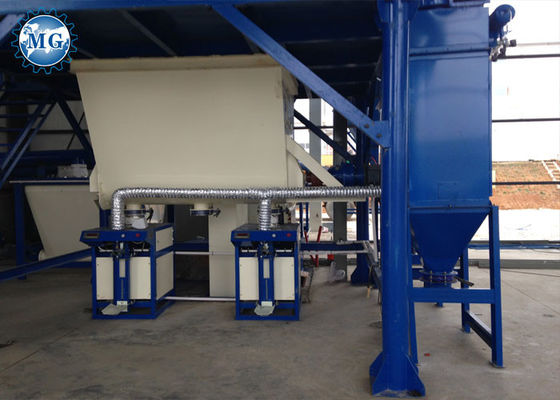

The Working Site of Valve Port Cement Bag Packing Machine for Prodution Plant:



220V 380V 440V Cement Bag Packing Machine For Automatic Tile Adhesive Plant 0



The Valve Port Cement Bag Packing Machine in Factory:

220V 380V 440V Cement Bag Packing Machine For Automatic Tile Adhesive Plant 1



We are professional manufacturer of dry mortar machines, our company dedicated in this field for more than 20 years, we supply one-stop service on dry mortar plant, include high quality machine, latest formula, top rank additives, installation and training on site,etc.
