6-8T/H Fast Dry Mortar Mixer Machine Ceramic Tile Adhesive Making Machine

Certification
China Zhengzhou MG Industrial Co.,Ltd certification
China Zhengzhou MG Industrial Co.,Ltd certification
Customer Reviews
Dear Jason Liu It is very nice to hear from you as long time we no contact each other. By the way, the machine which we bought from you since 2017 we already assembled and being use from that time until now. So far there is no problem with the machine, so it can indicates that your machine is very good with the quality.

—— Ravin

Hello Zoey, Hope it is going well and safe with you guys in the strange new world we live in. It has been a year now since we installed Dry mortar plant and operating in SA. your machine is very good. As our output is increasing, I am reviewing options of installation of a second production line. Can you please send me a quote for a new plant ?

—— Francois

Hello Jason , how are you? We as a Company, we really appreciate your efforts on installing the plant on time, we really are thankful on your workers, they work hard to finish the plant and we helped them a lot but we finished on time without any problem... Also we tryed to be really nice and friendly with the workers so I hope they had a great t

—— Merita

Hi Zoey, All is well, How about you ? Yes, MG machine are working good. Thank you for your support. With this kind of machine we can make our own pre bag grout. Then consultants can’t complain anymore.

—— Prathamesh

I'm Online Chat Now

6-8T/H Fast Dry Mortar Mixer Machine Ceramic Tile Adhesive Making Machine

6-8T/H Fast Dry Mortar Mixer Machine Ceramic Tile Adhesive Making Machine
6-8T/H Fast Dry Mortar Mixer Machine Ceramic Tile Adhesive Making Machine 6-8T/H Fast Dry Mortar Mixer Machine Ceramic Tile Adhesive Making Machine 6-8T/H Fast Dry Mortar Mixer Machine Ceramic Tile Adhesive Making Machine 6-8T/H Fast Dry Mortar Mixer Machine Ceramic Tile Adhesive Making Machine

Large Image :  6-8T/H Fast Dry Mortar Mixer Machine Ceramic Tile Adhesive Making Machine

Product Details:
Place of Origin: Zhengzhou City, Henan Province, China
Brand Name: MG
Certification: CE ISO 9001:2008
Model Number: MGDM-3.1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard seaworthy packing-Wooden box packing and bubble wrap packing
Delivery Time: 20-25 working days from paid advance payment
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 50 sets/month

6-8T/H Fast Dry Mortar Mixer Machine Ceramic Tile Adhesive Making Machine

Description
Product Name: Semi-automatic Dry Mortar Mixer Machine Capacity: 6-8 T/H
Mixing Type: Twin Shaft Mixer Mixing Time: 3-5 Minutes/Batch
Dimension: 6000X6000X6000mm Voltage: 380V-440V, 50/60Hz Or Customized
Certificate: CE ISO9001:2008 Installation: Engineers Are Provided To Install Oversea
High Light:

8T/H Dry Mortar Mixer Machine

,

6T/H Dry Mortar Mixer Machine

,

8T/H Tile Adhesive Making Machine







   Semi-automatic Dry Mortar Mixer Machine



1. Product Overview of Semi-automatic Dry Mortar Mixer Machine



MG sei-automatic dry mortar mixer machine features at various materials manually feeding into feed hopper, it can realize automatically dust collection, mixing, filling and packing under the semi-automatic control system.



Area occupation <20 m2; equipment height: 6 m; manpower required: about 3-4 person, production capacity: 5-6 tons/hour . This production line is the ideal selection for medium enterprises who want set up a dry mortar factory at a reasonable price with a quick profits feedback.



2. Working Principle of Semi-automatic Dry Mortar Mixer Machine



First the raw material is put into the feed hopper according to mixture ratio.
Then, through the action of control system, the equipment can realize automatic feeding, automatic mixing and automatic rationing and packaging.
Furthermore, the equipment adopts high-efficiency biaxial agravic mixer as its main mixing system. Requiring little investment and small area but with good efficiency, it is an ideal one for small and medium-sized company.



6-8T/H Fast Dry Mortar Mixer Machine Ceramic Tile Adhesive Making Machine 0

3. Parameters of Semi-automatic Dry Mortar Plant



Model MGDM-3.2
Capacity 6-8T/H
Total Power 58kw
Overall Dimension 6m*6m*6m
Machine Occupy Area 25-35 ㎡
Workshop Area 400-600㎡
Worker Required 3-4 Person
Transportation  1 no 40 HQ container



4. Composition of Semi-automatic Dry Mortar Plant

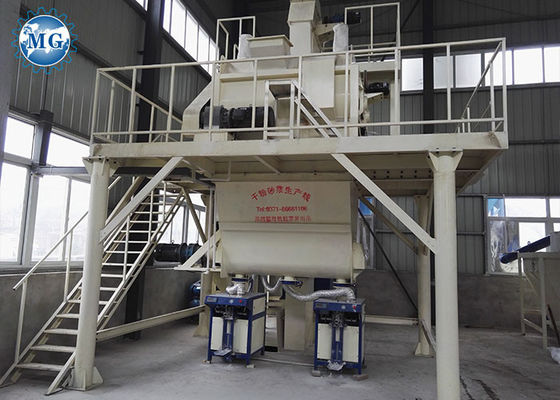

semi-automatic dry mortar mixer machine



The semi-automatic dry mortar mxier machine includers a bucket elevator, a twin shaft mixer, a finish product hopper,automatic packing machine(quantity is as your require), dust collector, air compressor, platform and steel structure, control cabinet.



5. Our Factory

6-8T/H Fast Dry Mortar Mixer Machine Ceramic Tile Adhesive Making Machine 2



6. Successful Project

6-8T/H Fast Dry Mortar Mixer Machine Ceramic Tile Adhesive Making Machine 3



7. Zhengzhou MG industrial Co., Ltd, the leader of Full Automatic Tile Adhesive/Skim Coat/Wall Putty/Cement Mixing Making Machine!


Zhengzhou MG industrial Co., Ltd, was verified by ISO9001 quality control system, awarded as Henan first-class science and technology enterprise by government. We were Henan observe quality and credibility enterprise union governing unit in 2012.


Our company engaged in the dry powder mixing equipment R&D, production, sales and construction, providing most efficient turnkey solutions to our clients in green building energy-saving insulation and green wall (building) materials manufacturing equipment, production technology and construction program.


Our main products include dry mortar production line, thermal insulation mortar production line, sand dryer, powder blending machine, concrete mixer, and others.



8. FAQ



1. What's the difference between full automatic dry mortar plant and Semi-automatic dry mortar plant?

A: Semi-automatic dry mortar plant is manual feeding, automatic weighing and packaging and without silos while full automatic type can realize automatic feeding and packaging with silos.



2. How is the quality of your products?



A: Our machines are manufactured strictly according to national and international standards, and we check every small parts before delivery



3. How about the price?



A: We are factory sale and be able to give you the lowest price than the market, and we have policy of time saving and honest, we quote as low as possible for any customer and give discount according to quantity.



4. What equipment and service you can provide?

A: We can provide you turnkey solution of dry mortar plant from working site planning to dry mortar machines, transportation, installation and training, formula of dry mortars, after sales services, life time technical support etc.



5. What is the capacity of your dry mortar plant?

A: We have dry mortar plant capacity from 3-30T/H as your requirement, And also we can customize the machine for you.



6. Can you install the dry mortar plant in my country?

A: Yes, we will send engineers to your country for guiding installation and training your workers to operate the machine.
