20-30T/H Full Automatic Tile Adhesive Machine Tile Cement Making Machine

Certification
China Zhengzhou MG Industrial Co.,Ltd certification
China Zhengzhou MG Industrial Co.,Ltd certification
Customer Reviews
Dear Jason Liu It is very nice to hear from you as long time we no contact each other. By the way, the machine which we bought from you since 2017 we already assembled and being use from that time until now. So far there is no problem with the machine, so it can indicates that your machine is very good with the quality.

—— Ravin

Hello Zoey, Hope it is going well and safe with you guys in the strange new world we live in. It has been a year now since we installed Dry mortar plant and operating in SA. your machine is very good. As our output is increasing, I am reviewing options of installation of a second production line. Can you please send me a quote for a new plant ?

—— Francois

Hello Jason , how are you? We as a Company, we really appreciate your efforts on installing the plant on time, we really are thankful on your workers, they work hard to finish the plant and we helped them a lot but we finished on time without any problem... Also we tryed to be really nice and friendly with the workers so I hope they had a great t

—— Merita

Hi Zoey, All is well, How about you ? Yes, MG machine are working good. Thank you for your support. With this kind of machine we can make our own pre bag grout. Then consultants can’t complain anymore.

—— Prathamesh

I'm Online Chat Now

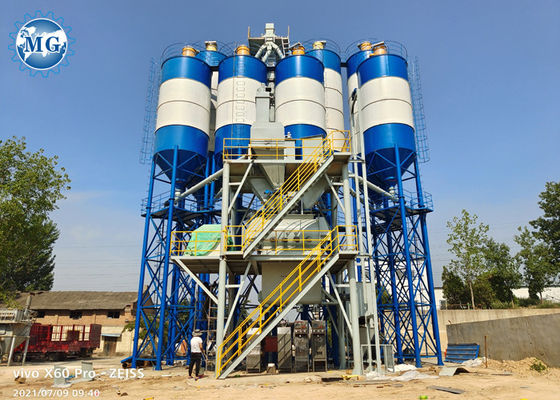

20-30T/H Full Automatic Tile Adhesive Machine Tile Cement Making Machine

20-30T/H Full Automatic Tile Adhesive Machine Tile Cement Making Machine
20-30T/H Full Automatic Tile Adhesive Machine Tile Cement Making Machine
20-30T/H Full Automatic Tile Adhesive Machine Tile Cement Making Machine 20-30T/H Full Automatic Tile Adhesive Machine Tile Cement Making Machine 20-30T/H Full Automatic Tile Adhesive Machine Tile Cement Making Machine

Large Image :  20-30T/H Full Automatic Tile Adhesive Machine Tile Cement Making Machine

Product Details:
Place of Origin: China
Brand Name: MG
Certification: CE, ISO, SGS,BV
Model Number: MG-3.7
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard seaworthy packing-Wooden box packing and bubble wrap packing
Delivery Time: 20-25 working days from paid advace payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 30 sets per month

20-30T/H Full Automatic Tile Adhesive Machine Tile Cement Making Machine

Description
Product Name: Tile Adhesive Machine Application: Tile Adhesive And Tile Cement Production
Workers Required: 3-4 Workers Installation Service: We Send Engineer To Oversea For Guiding Installation
Color: Light Grey Or Customized Mixer Type: High Efficiency Twin Shaft Paddle Mixer Or Plough Share Mixer
Control System: Intelligent PLC Control Cabinet Total Power: 90-120KW
Workshop Area: 800-1500 M2 Machine Occupy Area: 80-120 M2
High Light:

Full Automatic Tile Adhesive Machine

,

30T/H Tile Adhesive Machine

,

30T/H Tile Cement Making Machine

20-30T/H Full Automatic Tile Adhesive Machine Tile Cement Making Machine Export To Saudi Arabia





1. Description Of MG Automatic tile adhesive machine:



Tile adhesive machine (or tile adhesive making machine) is a set of machinery that produces dry mortar for construction industry and other uses. It is mainly composed of elevator, premix weighting bin, stock bin, mixing engine, finished product warehouse, packer, dust collector and electric control cabinet. Sand drying and screening equipment can be added according to customer's different requirements.



Zhengzhou MG tile adhesive machine is divided into Simple dry mortar mixer machine 3-5TPH, Semi-automatic dry mortar production machine 6-8TPH, Automatic dry mortar mixing production line 10-30TPH, and Tower type large dry mix mortar production line 30-50TPH which according to the output can be customized.



2.  Parameter of MG Full Automatic Tile Adhesive Machine:

       Model     2000L mixing         plant      3000/4000L           mixing plant    6000L mixing        plant     10000L mixing       plant
     Capacity        10-12T/H        15-30T/H        30-40T/H         50-60T/H
 Machine height            8-9m           9-10m         11-12m          13-15m
    Total power          80-90KW       90-100KW      100-120KW      120-150KW
       Worker               required        2-3 person         3-4 person        3-4 person       3-4 person
     Workshop           required       500-600m2       600-800m2        800-1000m2      1000-1500m2
      Bag belt             conveyor     B500X5000mm     B500X5000mm     B500X5000mm    B500X5000mm
        Pallet                 wrapping           machine          Provide         Provide         Provide          Provide
      Sand dryer Provide as          requirement Provide as requirement Provide as requirement Provide as requirement
      HS code     8474390000      8474390000     8474390000        8474390000

20-30T/H Full Automatic Tile Adhesive Machine Tile Cement Making Machine 0


3. Configuration of MG Full Automatic Tile Adhesive Machine:

20-30T/H Full Automatic Tile Adhesive Machine Tile Cement Making Machine 1



4. Application of MG Automatic Tile Adhesive Machine:



MG automatic tile adhesive mortar production line can be used to produce the following dry mortars:

20-30T/H Full Automatic Tile Adhesive Machine Tile Cement Making Machine 2





5. Company introduction of Zhengzhou MG:
Zhengzhou MG Industrial Co,. Ltd, the leader in pre-mixed dry mortar mixing plant, providing you with new and refurbished building solutions over 70 countries around the world. Zhengzhou MG was founded in 2000, located in the beautiful city of Zhengzhou, which is an integrated high-tech enterprise of R&D, production, sale and construction in dry mortar mixing equipment. We are an executive member of Chinese private Technology Promotion Committee and building materials Experts Association. As an National top rank building Mechanical Enterprise, we're certified by ISO9001 quality management system, and we honored to be the executive director of Henan Building Energy Conservation Committee.
20-30T/H Full Automatic Tile Adhesive Machine Tile Cement Making Machine 3

6. Our Certificates:
Zhengzhou MG has obtained Henan advanced enterprise certificate, Henan excellent technology enterprise certificate, Henan famous brand certificate, practical patent certificates of packing machine, weighing system, finish product hopper, dust collector, twin shaft mixer and bucket elevator, verification of compliance, certificate of registration ISO9001:2008, environmental management system certificate, quality management system certificate.
20-30T/H Full Automatic Tile Adhesive Machine Tile Cement Making Machine 4



7. Customer Visting Zhengzhou MG For the tile adhesive machine:
20-30T/H Full Automatic Tile Adhesive Machine Tile Cement Making Machine 5



8. MG Full automatic tile adhesive machine loading to foreign customers:

20-30T/H Full Automatic Tile Adhesive Machine Tile Cement Making Machine 6



9. FAQ:



1, How about the investment of this project?

Our engineer can design the dry mortar plant as your requirement and your budget, different dry mortar plant investment are difference.

Low capacity low cost, we will provide you cost effective solutions as your requirement.

2, What's the difference between full automatic dry mortar plant and Semi-automatic dry mortar plant?

(1) Semi-automatic dry mortar plant is cheaper than full automatic dry mortar plant.

(2) Semi-automatic dry mortar plant do not need to equip silos while full automatic dry mortar equip material silos.

(3) Semi-automatic dry mortar is manual feeding and automatic weighing and packaging, Full automatic dry mortar plant is automatic feeding and automatic weighing and packaging.

3, How many people required to operate this dry mortar mixing equipment ?

Usually 2-3workers are enogh to operate thisfull automatic tile adhesive mortar production line.

4, What equipment and service you can provide?

We can provide you turnkey solution of dry mortar plant from working site planning to dry mortar machines, transportation, installation and training, formula of dry mortars, after-sales services, life time technical support etc.

5, What is the area required for this dry mortar mixing equipment ?

According to the capacity of the full automatic tile adhesive mortar production line, the area required 120-150 m2.

6. Can you install the dry mortar plant in my country?

Yes, we will send engineers to your country for guiding installation and training your workers to operate the machine.



If you want to know more of our dry mortar plant, please send us inquiry or contact us directly.
