15-30 T/Hour Tile Adhesive Machine Dry Mortar Production Line

15-30 T/Hour Tile Adhesive Machine Dry Mortar Production Line
15-30 T/Hour Tile Adhesive Machine Dry Mortar Production Line
15-30 T/Hour Tile Adhesive Machine Dry Mortar Production Line 15-30 T/Hour Tile Adhesive Machine Dry Mortar Production Line 15-30 T/Hour Tile Adhesive Machine Dry Mortar Production Line

Large Image :  15-30 T/Hour Tile Adhesive Machine Dry Mortar Production Line

Product Details:
Place of Origin: China
Brand Name: MG
Certification: CE, ISO, SGS,BV
Model Number: MG-3.7
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard seaworthy packing-Wooden box packing and bubble wrap packing
Delivery Time: 20-25 working days from paid advace payment
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 30 sets per month

15-30 T/Hour Tile Adhesive Machine Dry Mortar Production Line

Description
Product Name: Tile Adhesive Making Machine Application: Tile Adhesive And Dry Mortar Production
Workers Required: 3-4 Workers Installation Service: We Send Engineer To Oversea For Guiding Installation
Total Power: 80-120KW Based On Configuration Mixer Type: High Efficiency Twin Shaft Paddle Mixer Or Plough Share Mixer
Control System: Intelligent PLC Control Cabinet Machine Height: Inside Wrokshop Height About 10m, Silo Heigth 15m
Workshop Area: 800-1500 M2 Formula And Chemicals: Will Provide As Requirement
High Light:

30 T/Hour Tile Adhesive Machine

,

15 T/Hour Tile Adhesive Machine

,

30 T/Hour Dry Mortar Production Line

2022 Automatic Tile Adhesive Making Machine dry mortar production line



Tile adhesive making machine





1. Description Of MG Automatic Tile Adhesive Making Machine:

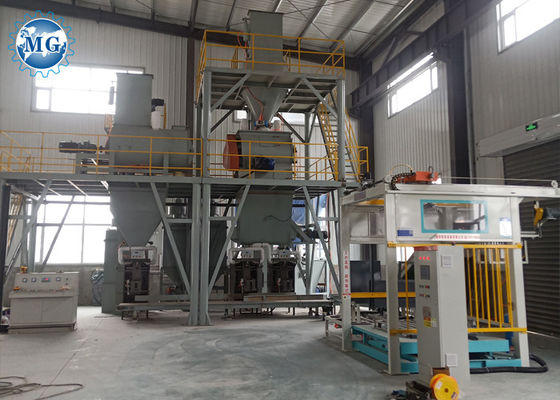

MG tile adhesive making machine, capacity 10-50t/h, is based on the latest Germany technology, this production line adopts automatic control system, its capacity at 30-100 thousand tons per year depended on different configuration.



The configuration of the full automatic tile adhesive making machine:



Item Quantity Specification
Bucket Elevator for Sand Silo 1 5.5 kw CE Motor
Storage Silo 2 60T or 100T  for Cement and Sand
Screw Conveyor 2 15kw CE Motor
Weighing Hopper 1 2 m³, 5.5kw CE Motor
Bucket Elevator for Mixer 1 4 kw CE Motor
Pre-mix Hopper 1 2 m³

Twin Shaft Mixer

Equip with Fly Cutting System

1

2 m³/3 m³/4 m³/6 m³

18.5KW/22KW/30KW/37KW



Finish Product Hopper 1 2m³/, 7.5kw CE Motor
Valve Port Packing Machine 2/3/4 8KW/12KW, 15-50kg/bag
Dust Collector 2/3/4 6KW/9KW/12KW
Air Compressor 1 7.5KW/11KW/15KW
Platform and Steel Structure 1 16# Channel Steel
Control Cabinet 1 PLC Touch Screen and Computer Control



2.  Parameter of MG Full Automatic Tile Adhesive Making Machine:

       Model 2000L mixing plant      3000/4000L               mixing plant 6000L mixing plant 10000L mixing plant
     Capacity        10-12T/H        15-30T/H        30-40T/H         50-60T/H
 Machine height              8-9m           9-10m         11-12m          13-15m
      Total power          80-90KW       90-100KW      100-120KW      120-150KW
      Worker              required        2-3 person         3-4 person        3-4 person       3-4 person
    Workshop           required       500-600m2       600-800m2        800-1000m2      1000-1500m2
     Bag belt             conveyor     B500X5000mm     B500X5000mm     B500X5000mm    B500X5000mm
       Pallet                 wrapping           machine          Provide         Provide         Provide          Provide
      Sand dryer Provide as          requirement Provide as requirement Provide as requirement Provide as requirement
         HS code     8474390000      8474390000     8474390000        8474390000


3. Configuration of MG Full Automatic Tile Adhesive Making Chine:

15-30 T/Hour Tile Adhesive Machine Dry Mortar Production Line 1

15-30 T/Hour Tile Adhesive Machine Dry Mortar Production Line 2

15-30 T/Hour Tile Adhesive Machine Dry Mortar Production Line 3



4. Application of MG Automatic Tile Adhesive Making Machine:



MG automatic dry mortar plant can be used to produce the following dry mortars:

15-30 T/Hour Tile Adhesive Machine Dry Mortar Production Line 4





5. Company introduction of Zhengzhou MG:
Zhengzhou MG Industrial Co,. Ltd, the leader in pre-mixed dry mortar mixing plant, providing you with new and refurbished building solutions over 70 countries around the world. Zhengzhou MG was founded in 2000, located in the beautiful city of Zhengzhou, which is an integrated high-tech enterprise of R&D, production, sale and construction in dry mortar mixing equipment. We are an executive member of Chinese private Technology Promotion Committee and building materials Experts Association. As an National top rank building Mechanical Enterprise, we're certified by ISO9001 quality management system, and we honored to be the executive director of Henan Building Energy Conservation Committee.
15-30 T/Hour Tile Adhesive Machine Dry Mortar Production Line 5

6. Our Certificates:
Zhengzhou MG has obtained Henan advanced enterprise certificate, Henan excellent technology enterprise certificate, Henan famous brand certificate, practical patent certificates of packing machine, weighing system, finish product hopper, dust collector, twin shaft mixer and bucket elevator, verification of compliance, certificate of registration ISO9001:2008, environmental management system certificate, quality management system certificate.
15-30 T/Hour Tile Adhesive Machine Dry Mortar Production Line 6



7. Customer Visting Zhengzhou MG For the dry mortar mix plant:
15-30 T/Hour Tile Adhesive Machine Dry Mortar Production Line 7

8. MG Full automatic dry mortar mix plant loading to foreign customers:

15-30 T/Hour Tile Adhesive Machine Dry Mortar Production Line 8





9. FAQ:



1, How about the investment of this project?

Our engineer can design the dry mortar plant as your requirement and your budget, different dry mortar plant investment are difference.

Low capacity low cost, we will provide you cost effective solutions as your requirement.

2, What's the difference between full automatic dry mortar plant and Semi-automatic dry mortar plant?

(1) Semi-automatic dry mortar plant is cheaper than full automatic dry mortar plant.

(2) Semi-automatic dry mortar plant do not need to equip silos while full automatic dry mortar equip material silos.

(3) Semi-automatic dry mortar is manual feeding and automatic weighing and packaging, Full automatic dry mortar plant is automatic feeding and automatic weighing and packaging.

3, How many people required to operate this dry mortar mixing equipment ?

Usually 2-3workers are enogh to operate thisfull automatic tile adhesive mortar production line.

4, What equipment and service you can provide?

We can provide you turnkey solution of dry mortar plant from working site planning to dry mortar machines, transportation, installation and training, formula of dry mortars, after-sales services, life time technical support etc.

5, What is the area required for this dry mortar mixing equipment ?

According to the capacity of the full automatic tile adhesive mortar production line, the area required 120-150 m2.

6. Can you install the dry mortar plant in my country?

Yes, we will send engineers to your country for guiding installation and training your workers to operate the machine.



If you want to know more of our dry mortar plant, please send us inquiry or contact us directly.
