Product Details:
|
| Name: | Dry Mix Mortar Plant | Mixing Time: | 3-5 Minutes |
|---|---|---|---|
| Weight: | 30T | Power: | 80 Kw |
| Voltage: | 220V-440 V | Mixer Type: | Twin Shaft Mixer |
| Advantage: | Fast Mixing | Installation: | Provided |
| High Light: | High Productivity Dry Mix Mortar Plant,30T/H Dry Mix Mortar Plant,30T/H Tile Adhesive Mixing Equipment |
||
1. What is Dry mortar:
Dry mortar mainly refers to the blended masonry mortar, plastering mortar and floor tile mortar all for building construction and interior and exterior applications. Dry mix mortar or dry powder mortar is a kind of mixed product made by means of admixing the additives materials together with the dried and screened sand, cement, and fly ash in proportion.
2. Description Of MG Automatic Dry Mortar Tile Adhesive Production Line :
According to customer requirements, we can design personalized production processes. The equipment of this production line includes: Dry sand production part, Material storage part, Material measuring system and additive measuring system, Mixing equipment and Packaging equipment.

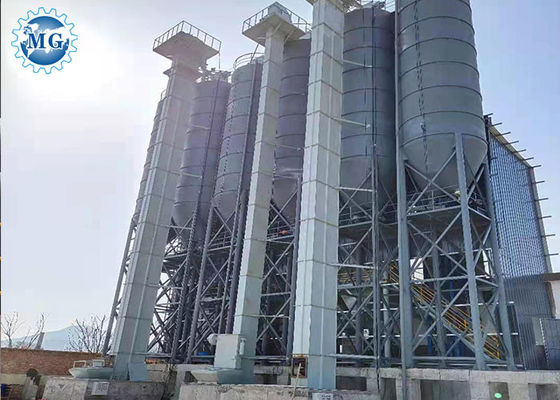

MG tower-type dry mortar plant building material machinery is arranged from top to bottom according to the production process, and the production is relatively smooth. It is suitable for the production of ordinary mortar and various special mortar, with many kinds of products and small cross pollution of raw materials. It has small floor area, atmospheric appearance, relatively low energy consumption, and relatively large initial investment compared with other process structures.
3. Mechnical principle of MG Automatic Dry Mortar Tile Adhesive Production Line:
The non-gravity mixer works in the principle of mixing the materials in air countercurrent. The double shaft paddles are installed inside the drum and rotated in the opposite direction to each other. Each of the paddles is designed in rational separation distance and angle degree through the scientific calculation. When the materials are thrown to the air current inside drum by the force from the rotating paddles, the non-gravity force will be instantaneously generated and the materials will be thrown to the opposite area. The space between the twins shafts will be formed a fluidized non-gravity area and an air eddy current, in the bottom part, an air flowing layer also will be formed inside the drum. As a result, the materials are taken the three-dimensional compound motions, in order to be evenly, rapidly and circularly mixed in all aspects.
4. Configuration Of MG Full Automatic Dry Mortar Tile Adhesive Production Line:
1. Aggregates storage bins, powder materials silos.
2. Screw conveyors, weighing scales
3. Bucket elevators
4. Full automatic batching system
5. Pre-mixing bin
6. Mixer(Installed with triaxial mixing vanes)
7. Finished products storage bins
8. Packaging system (Open gate/valve-gate type packing machine)
9. Dust removal system(impulse type)
10. Control system to inspect the level of powder materials
11. Steel frame, platform, ladder stand, barrier
12. Main control system
13. Air compressor system: The central air compressor
14. The gas phase equilibrium system
15. Bulk materials storage system: finished mixture tanks, bulk machine.
16. Drying system
17. Alarm system
| Model | 2000L Mixing plant | 3000/4000L Mixing plant | 6000L Mixing Plant | 10000L Mixing Plant |
| Capacity | 10-12T/H | 15-30T/H | 30-40T/H | 50-60T/H |
| Machine Height | 8-9m | 9-10m | 11-12m | 13-15m |
| Total Power | 80-90KW | 90-100KW | 100-120KW | 120-150KW |
| Worker Required | 2-3 person | 3-4 person | 3-4 person | 3-4 person |
| Workshop Required | 500-600㎡ | 600-800㎡ | 800-1000㎡ | 1000-1500㎡ |
| Bag belt Conveyor | B500X5000mm | B500X5000mm | B500X5000mm | B500X5000mm |
| Pallet Wrapping Machine | Provide | Provide | Provide | Provide |
| Sand Dryer | Provide As Requirement | Provide As Requirement | Provide As Requirement | Provide As Requirement |
| HS Code | 8474390000 | 8474390000 | 8474390000 | 8474390000 |
6. Advantage of MG Automatic Dry Mortar Machines Dry Mortar Mixer Line:
1, A high degree of intelligence. It is controlled by the control system and realizes automatic automation of automatic batching, automatic weighing, automatic feeding, automatic mixing and automatic packaging.
2, The ingredients are accurate, can automatically calculate the error and automatically correct.
3, The use of tower layout structure, shorten the transmission distance and increase production efficiency.
4. The use of a biaxial non-gravity mixer( Twin shaft mixer) has high mixing uniformity, and materials with large differences in physical properties such as specific gravity, particle size and shape do not easily segregate when mixed in the mixer.
5, The control system man-machine dialogue is simple and easy to operate.
6. With strong environmental protection, colleagues who reduce the labor intensity of their staff effectively improve the work environment in the working area.
7. Application of MG Automatic Dry Mortar Tile Adhesive Production Line:
MG automatic dry mortar plant can be used to produce the following dry mortars:
Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc.
Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildewproof mortar, shielding mortar etc.
8. Workshop
9. Our Company
Zhengzhou MG industrial Co., Ltd, the leader of Full Automatic dry mortar mixing equipment!
Zhengzhou MG industrial Co., Ltd, was verified by ISO9001 quality control system, awarded as Henan first-class science and technology enterprise by government. We were Henan observe quality and credibility enterprise union governing unit in 2012.
Our company engaged in the dry powder mixing equipment R&D, production, sales and construction, providing most efficient turnkey solutions to our clients in green building energy-saving insulation and green wall (building) materials manufacturing equipment, production technology and construction program.
Our main products include dry mortar production line, thermal insulation mortar production line, sand dryer, powder blending machine, concrete mixer, and others.
10. Our Service:
1) Unpon got your inquiry, We will reply to you in 24 hours.
2) Assist clients to prepare for the first construction scheme and supply foundation drawing.
3) Oversea installation and provide technical exchange, train client to operate the machine.
4) Supply spare and accessory parts at favorable price for long-term.
5) Spare part are original, authentic, good quality, can be avaible from stock, and sent to client, immediately by DHL, EMS, Fedex, and by air, gurantee client to receive it in shortest time. Strict site quality inspection system:
Installation captain inpection: Evaluate the installation level of dry mix mortar production line, Spot QA engineer inspection: Inspect the whole in installation process and key components.
Service engineer inspection: Inspect the debugging and running condition of whole production line.
