CE Certificate automatic tile adhesive plant tile grout making machine
1. Decription of MG automatic tile adhesive plant:
According to customer requirements, we can design personalized production processes. The equipment of this production line includes: Dry sand production part, Material storage part, Material measuring system and additive measuring system, Mixing equipment , Packaging equipment, Control system.
The main components of this tile adhesive plant: raw material storing system, automatic weighing system, conveying system, mixing system, pneumatic system, packing system and dedusting system. the main control system administrate the production order based on fixed formula ratio, thus the production line will dosing the coarse materials from storage silos, after automatic weighing, the material will enter in premix tank and high efficient agravic mixer continuously, to mix in a shortperiod(3-5min).The well mixed material will discharge into the holding tank, which will make secondary mixing, ther down to new designed automatic filling and packing machine, the packing machine work efficiently based on fixed time and volume, it increase the capacity sharply, well packed finished mortar will be transfered to finished mortar area, ready fo sale.
2, Configuration of MG automatic tile adhesive plant:
1, Dry sand production system
In order to obtain dry sand that meets the production requirements, the raw wet sand must be dried and the moisture content should be less than 0.5%. The main production equipment used in the drying process is a three-pass dryer, which is newly developed for the drying of sand Dryer, high thermal efficiency, novel structure, compact, stable and efficient. After the sand is dried, it is sent to a classification screen by a belt conveyor. The dry sand is divided into several grains according to the process requirements and stored in the discharge bin.
2, Raw material silos cement,sand storage
The material storage system is composed of a number of round silos with different volumes, and the silos are equipped with maintenance ladders and guardrails. The top of the silo is equipped with a feeding port, an access port and a dust collector at the top of the silo. Each silo is also equipped with high and low level gauges, which helps the staff to understand the situation of the materials in the silo. The lower mouth of the silo is equipped with a valve, and various materials are conveyed to the weighing bin by a screw conveyor.
3, Weighing hopper: Weight the material from silo and realize automatic dosing. To realize intelligent control.
The material measuring system consists of weighing bin, steel frame and sensor group.
The weighing bin is a closed bin body, the lower part is equipped with a discharge screw, and the upper part has a feeding port and a breathing system. Under the instruction of the control center, the materials are sequentially added to the weighing bin according to the set formula. After the measurement is completed, wait for the instructions to send the materials to the bucket elevator inlet of the next link. The entire batching process is controlled by the centralized control cabinet PLC. Control, high degree of automation, small error and high production efficiency.
4, Mixing system: High efficiency Double-shaft paddle mixer
The mixing main machine is generally a double-shaft non-gravity mixer, which can be targeted for selection according to the material. According to the program set by the PLC, the materials begin to mix after entering the main
machine, and the mixing is completed after 3-5 minutes. The control program issues an instruction to open the mixer's discharge door to discharge. In addition, in the process of material mixing, the next batch of materials has been finished.
5, Packaging machine: Automatic valve-bag packing machine,open-mouth bag packing mahcine and others
The production line is equipped with air-blown or air-floating packaging machines, and the number of packaging machines is determined according to the required output. In addition, the entire production line is equipped with a dust removal system to reduce dust and improve the working environment; the air supply system is an air compressor with a displacement of not less than 0.6m³ / min and a matching air storage tank.
6, Dust collecting system: Impulse dust collector to collect dust from bucket elevator and packing machine, make sure the workshop clean and good health to workers
7, Automation cotrol system: PLC+TOUCH SCREEN

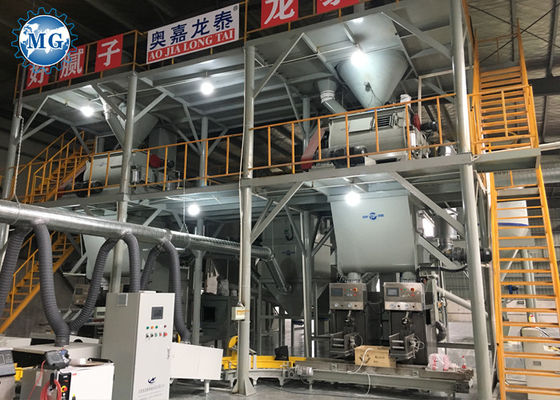

3. MG full automatic tile adhesive plant working site:
4. Certificate of Zhengzhou MG factory:
5. Full automatic tile adhesive plant installed in foreign countries:
7. About Us:
8. Why choose us:
We mainly engaged in providing turn-key service to numerous customers with engergy-saving and efficient practical solutions. Main advantage of dry powder mixing equipment from Zhengzhou MG (compared with other suppliers):
1. Over 20 years experience in this dry mortar production line. since 2000, Zhengzhou MG dedicated in the research and development of dry powder mixing equipment for decades, we are in a leading position in this trade;
2. Qe provide to customers with combat experience of decade years of construction management and multiple efficient project solution.
3. The special additives from Zhengzhou MG guranteed the quality of dry mortar from our clients.
We promise to all customers that: upon you choose our services and products, we will provide the first-class product quality, latest technology in mortar formula, and special additives; we ensure the good quality of dry mortar produced by our equipment.
9. FAQ:
1, How about the investment of this project?
A: Our engineer can design the dry mortar plant as your requirement and your budget, different dry mortar plant investment are difference.
Low capacity low cost, we will provide you cost effective solutions as your requirement.
2, What's the difference between full automatic dry mortar plant and Semi-automatic dry mortar plant?
A: (1) Semi-automatic dry mortar plant is cheaper than full automatic dry mortar plant.
(2) Semi-automatic dry mortar plant do not need to equip silos while full automatic dry mortar equip material silos.
(3) Semi-automatic dry mortar is manual feeding and automatic weighing and packaging, Full automatic dry mortar plant is automatic feeding and automatic weighing and packaging.
3, How many people required to operate this dry mortar plant?
A: Usually 2-4 workers are enogh to operate this dry mortar plant.
4, What equipment and service you can provide?
A: We can provide you turnkey solution of dry mortar plant from working site planning to dry mortar machines, transportation, installation and training, formula of dry mortars, after-sales services, life time technical support etc.
5, What is the area required for this dry mortar plant?
A: According to the capacity of the dry mortar plant, the area required 300-100 m2.
6, What is the total power consumption (KW) of this dry mortar plant?
A: It is 20-80W based on the capacity of the dry mortar plant.
7, What is the capacity of your dry mortar plant?
A: We have dry mortar plant with capacity 3-30T/H as your requirement, and also we can customize the dry mortar plant as your capacity requirement.
8, How long is the guarantee period?
A: 12 months, within this period, we provide you spare parts and services for free.
9, Can you install the dry mortar plant in my country?
A: Yes, we will send engineers to your country for guiding installation and training your workers to operate the machine.
If you want to know more of our dry mortar plant, please send us inquiry or contact us directly.
