Product Details:
|
| Material: | Channerl Steel And Steel Board | Function: | Mixing And Packing Dry Powder Material |
|---|---|---|---|
| Packing Method: | Valve Packing Or Open Packing | Installation Service: | Engineer To Oversea For Guiding Installation |
| Chemical: | Provide As Requirement | After-sales Services: | Online Support, Free Spare Parts, Field Installation |
| Control System: | Computer And PLC Control | Color: | Customer's Request |
| Batching And Weighting: | Automatic System | Certificate: | CE,SGS,BV,PERI |
| High Light: | dry mix mortar production line,mortar mixing equipment |
||

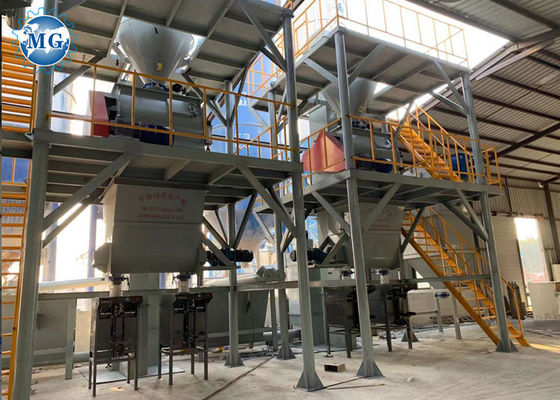

Full-Automatic Dry Mortar Mixing Plant Tile Adhesive Mixing Machine Wall Putty Mixing Plant
1. Decription
MG Automatic Dry Mortar Production Line adopts European advanced design concept and latest automatic control management system. Tower layout has been applied in the overall design and man-friendly operation with automation level has been largely improved. The capacity can reach 30,000-100,000 tons per year according to different configuration.
The main components: raw material storing system, automatic weighing system, conveying system, mixing system, pneumatic system, packing system and dedusting system. The main control system issues the production order based on certain formula proportion, thus the system will convey the raw materials from storage silos to the automatic weighing hopper, the material will be transported in premix hopper and high efficient agravic mixer continuously, after 3-5min mixing. The well mixed material will be discharged into the finished product bin where equip the secondary mixing system and waiting for the automatically filling, weighting and packing for the end product. New designed packaging machine can work efficiently based on certain time and volume, which highly improved the work efficiency. The packed bag finished product will be conveyed to finished product area for delivery.
2. Product Technical Parameter
Technical parameter of MG full automatic dry mortar production line:
| Model | Name | Capacity | Machine height | Workshop area |
| MG-3.0 | Simple dry mortar production line | 3T/H | 3.5m | 400-500 m2 |
| MG-3.1 | Improved simple dry mortar production line | 4-5T/H | 3.5m | 400-500 m2 |
| MG-3.2 | Semi-automatic dry mortar production line | 6-8T/H | 6m | 600-800 m2 |
| MG-3.7 |
Full automatic dry mortar production line |
10-12T/H | 8m | 800-1000m2 |
Raw Material of Dry Mortar Plant:
1. Cementing material: cement, lime, plaster.
2. Aggregate: yellow sand, quartz sand, limestone, dolomite, expanded perlite etc.
3. Mineral admixture: industrial byproduct, industrial slag, fly ash, pozzolana, fine silica powder etc.
4. Water-retention and thickening material.
5. Chemical additives.
4. Product Abroad
5. About Us:
6. Packing & Shipment
7. Our Services
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Spare parts supply
